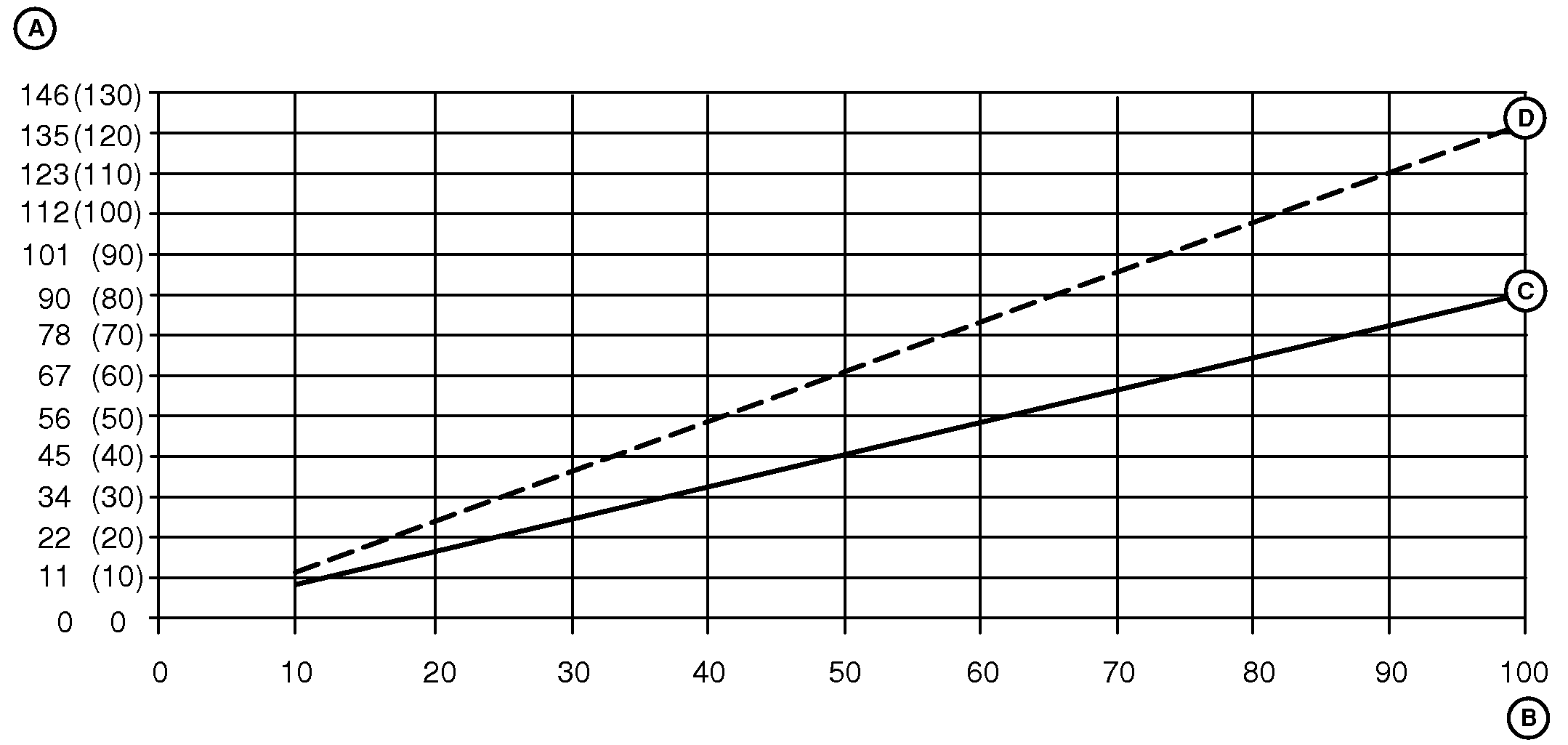

Oat Rate Chart for 19 and 38 cm (7.5 and 15 in) Rows, 32 mm Wide White Meter Wheels

A56349-UN-23JUN05

A - kg/ha (lb. per acre)

B - Transmission Setting

C - Two Rank 19 Tooth Sprocket

D - Two Rank 28 Tooth Sprocket

NOTE: If product is bridging at meter entry, install bridge divider to help product flow. (See Install Bridge Divider When Seeding Oats in Preparing Machine section.)

This chart is a general guideline for initial transmission setting. Perform rate checks to determine and adjust for exact rate desired.

To convert chart into guidelines for seeds per hectare (acre), multiply kg per ha by seeds per kg (lb. per acre by seeds per lb.).

• Meter gate full open
• Two rank manifold pressure 30" H₂O
• 32 mm Wide white meter wheel
