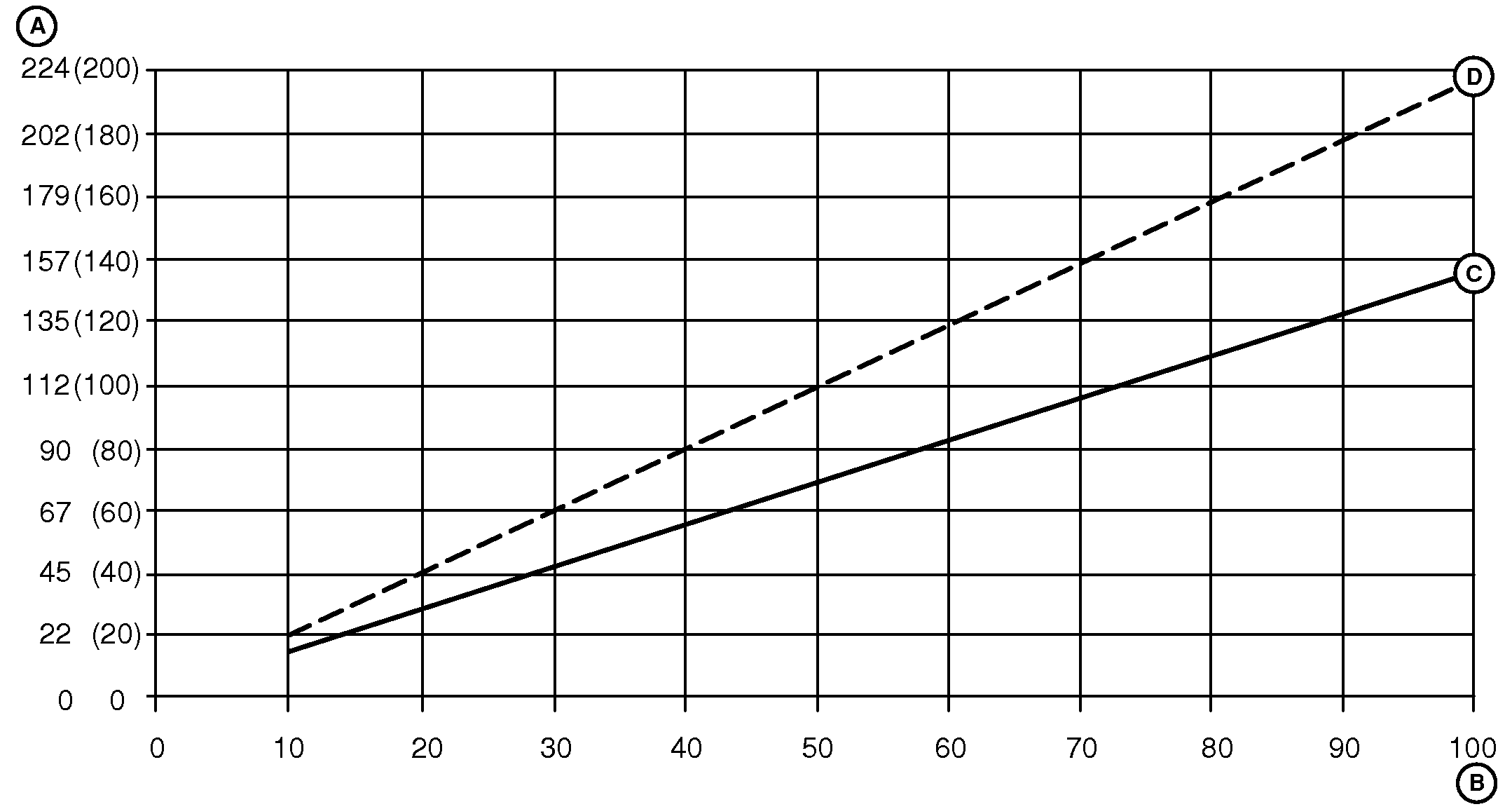

Wheat Medium Rate Chart for 19 and 38 cm (7.5 and 15 in.) Rows, 32 mm Wide Black Meter Wheels

A56354-UN-23JUN05

A - kg/ha (lb. per Acre)

B - Transmission Setting

C - Single and Two Rank 19 Tooth Sprocket

D - Two Rank 28 Tooth Sprocket

This chart is a general guideline for initial transmission setting. Perform rate checks to determine and adjust for exact rate desired.

To convert chart into guidelines for seeds per hectare (acre), multiply kg per ha by seeds per kg (lb. per acre by seeds per lb.).

• Meter gate full open
• Single rank manifold pressure 23" H²O
• Two rank manifold pressure 30" H₂O even if one rank is locked up
• 32 mm Wide black meter wheel
