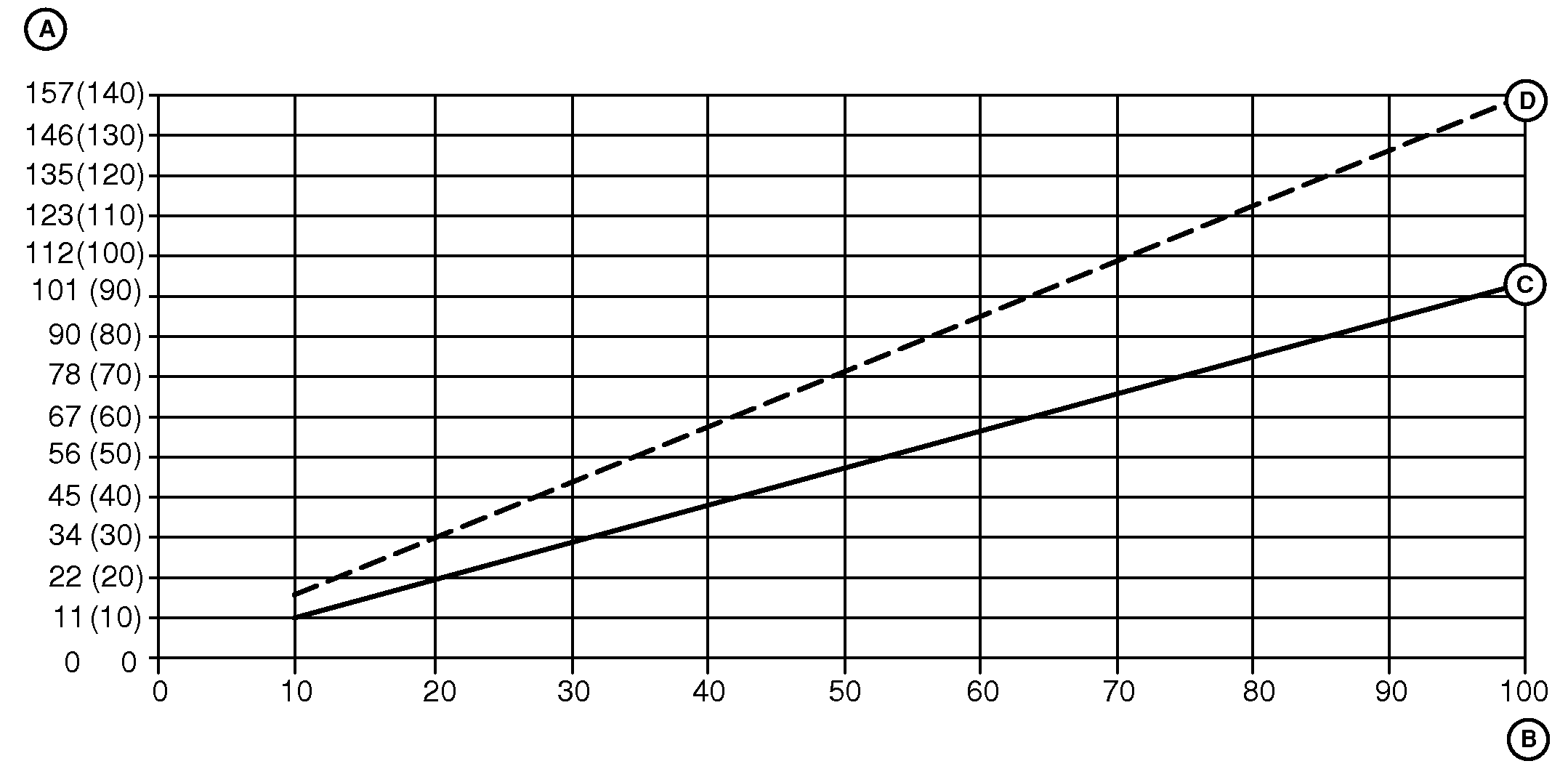

Sorghum Medium Rate Chart for 25 and 50 cm (10 and 20 in.) Rows, 32 mm Wide Black Meter Wheels

A56360-UN-23JUN05

A - kg/ha (lb. per Acre)

B - Transmission Setting

C - Two Rank 19 Tooth Sprocket

D - Two Rank 28 Tooth Sprocket

This chart is a general guideline for initial transmission setting. Perform rate checks to determine and adjust for exact rate desired.

To convert chart into guidelines for seeds per hectare (acre), multiply kg per ha by seeds per kg (lb. per acre by seeds per lb.).

• Meter gate two thirds open
• Manifold pressure 14" H²O
• 32 mm Wide black meter wheel
