Remove Meter Door Assembly

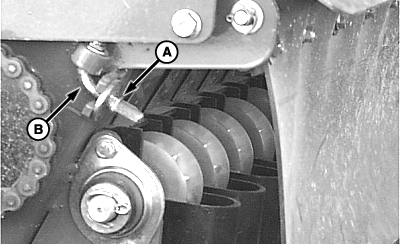

  1. A49500
    A49500-UN-11DEC02

    A - Nut

    B - L-Bolt

    With product tanks empty, loosen nuts (A) until L-bolts (B) can swing out freely.


  2. Remove meter door assembly.
