Tank Cleanout

CAUTION:

N39645
N39645-UN-06OCT88

Hydraulic failure can allow openers to fall rapidly, causing injury or death. To avoid hazard, always lock openers in raised position before adjusting, lubricating or servicing machine.

IMPORTANT: Hydraulic hoses between the lift cylinders and hydraulic lock-up valves should be inspected frequently for wear or damage. Contact your John Deere dealer for replacement hoses.

  • A43336A
    A43336A-UN-28FEB05

    Valve Shown in Closed Position

    A - Hydraulic Lock-Up Valve (shown closed)

    Hydraulic Lock-Up Valve:

    Fully retract rockshaft/opener cylinders and close hydraulic lock-up valve (A).

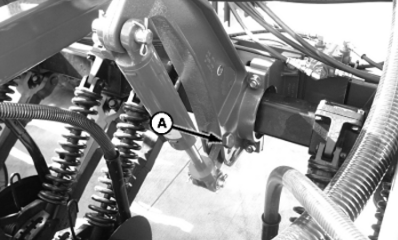

  • A48610
    A48610-UN-24JAN02

    A - Cap Screw

    Mechanical Lock-Up:

    If positive mechanical lock-up is needed, use cap screw (A) to lock each rockshaft cylinder.

  1. NOTE: A majority of seed can be removed from tank by using the cleanout chute. There will be a small pool of seed at the bottom of the hopper that will have to be removed with a vacuum cleaner or by removing the meter door assemblies.

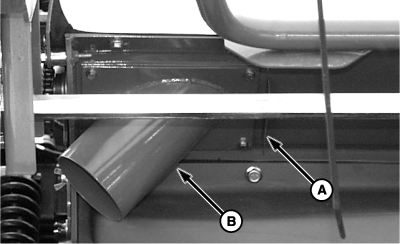

    A49111
    A49111-UN-19JUL02

    A - Door

    B - Chute

    Open cleanout door (A) to release product from tank through cleanout chute (B).


  2. Remove remaining seed with a vacuum cleaner or by removing meter door assemblies.

  3. Clean out any build up of treatments and talc.

RG53986,00001BC-19-20080624
