Center The Closing Wheels

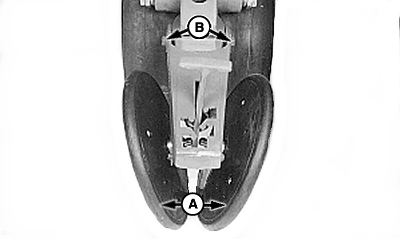

A46773
A46773-UN-12OCT00

A - Closing Wheels

B - Cap Screws

If the closing wheels (A) are not centered over the seed furrow, proceed as follows:

  1. Raise the machine.

  2. Loosen the cap screws (B) and adjust the closing wheels to the right or left. Visually center the closing wheels as required.

  3. Tighten the cap screws (B).

AG,OUO6074,1204-19-20160302
