Adjust the Gauge Wheels

IMPORTANT:

A68170-UN-14JUL10

A68178-UN-14JUL10

A - Adjusting Wrench

When assembled, the gauge wheels and the disk blades must be free to turn with minimal resistance.

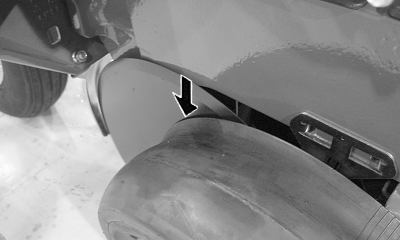

To prevent the buildup of soil or residue between the gauge wheels and the opener blades, adjust the gauge wheels.

Rotate the gauge wheel. Verify that the wheel is slightly touching the disk or less than the maximum specification away from the blades at their closest approach.

Item	Measurement	Specification
Maximum Gauge Wheel to Opener Blade Clearance	Distance	1.5 mm (1/16 in)

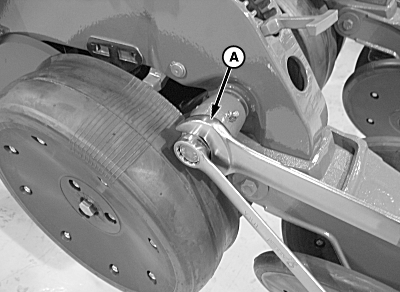

To adjust the gauge wheel, hold the cap screw with one wrench and turn the adjustment nut with another wrench (A). To move the wheel closer to the blade, turn the nut counterclockwise. To move the wheel away from the blade, turn the nut clockwise.

Tighten the cap screw to specification.

Item	Measurement	Specification
Gauge Wheel Arm Cap Screw	Torque	271 N·m (200 lb·ft)
