Electric Drive Fuse Identification

NOTE:

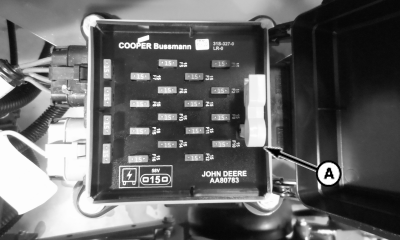

A89482-UN-04FEB16

A - Fuse Puller

NOTE: The four fuse positions (SP 1—4) are for spare fuses (15 A).

Electric Drive Fuse Identification (Machines with an Even Number of Rows)
Fuse	Description
F1	Row Units 1—2 Power (15 A)
F2	Row Units 3—4 Power (15 A)
F3	Row Units 5—6 Power (15 A)
F4	Row Units 7—8 Power (15 A)
F5	Row Units 9—10 Power (15 A)
F6	Row Units 11—12 Power (15 A)
F7	Row Units 13—14 Power (15 A)
F8	Row Units 15—16 Power (15 A)
F9	Row Units 17—18 Power (15 A)
F10	Row Units 19—20 Power (15 A)
F11	Row Units 21—22 Power (15 A)
F12	Row Units 23—24 Power (15 A)
F13	Row Units 25—26 Power (15 A)
F14	Row Units 27—28 Power (15 A)
F15	Row Units 29—30 Power (15 A)
F16	Row Units 31—32 Power (15 A)
SP 1—4	Spare Fuses (15 A)

Electric Drive Fuse Identification (Machines with an Odd Number of Rows)
Fuse	Description
F1	Row Unit 1 Power (15 A)
F2	Row Units 2—3 Power (15 A)
F3	Row Units 4—5 Power (15 A)
F4	Row Units 6—7 Power (15 A)
F5	Row Units 8—9 Power (15 A)
F6	Row Units 10—11 Power (15 A)
F7	Row Units 12—13 Power (15 A)
F8	Row Units 14—15 Power (15 A)
F9	Row Units 16—17 Power (15 A)
F10	Row Units 18—19 Power (15 A)
F11	Row Units 20—21 Power (15 A)
F12	Row Units 22—23 Power (15 A)
F13	Row Units 24—25 Power (15 A)
F14	Row Units 26—27 Power (15 A)
F15	Row Units 28—29 Power (15 A)
F16	Row Units 30—31 Power (15 A)
SP 1—4	Spare Fuses (15 A)
