Clean Out the Vacuum Meter

ExactEmerge™

1. CAUTION:


   A82483-UN-02MAY14


   TS220-UN-15APR13


   A82484-UN-02MAY14

   A - Cleanout Tray

   B - Gauge Wheel Arm

   Use caution if using seed treatments when opening meter doors. Chemicals cause eye, skin, or breathing problems. Wear mask, gloves, and goggles. Read and follow safety instructions on the chemical supplier label.

   Install seed meter cleanout tray (A) by seating it on gauge wheel arm (B) of row unit as shown.

---




2.
   A78022-UN-27AUG13

   A - Bowl

   B - Handle

   Open vacuum meter dome.

---




3. Rotate spindle handle (B) until it aligns with slots in seed bowl (A).

4. Pull seed bowl from spindle.

5. Return the seed meter cleanout tray to its storage position.

MaxEmerge™ 5e

1. NOTE:


   A89605-UN-01MAR16

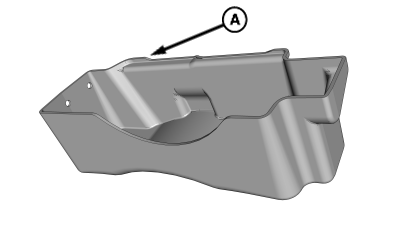

   A - Catch Pan

   The catch pan (A) is either on the planter frame, inside the planter frame, or on the ladder.

   Locate the catch pan (A).

---




2. CAUTION:


   A89609-UN-02MAR16


   A82664-UN-29MAY14


   A82665-UN-29MAY14

   Avoid chemical injury to eyes, skin, or lungs. If using seed treatments, use caution when opening meter domes and handling parts coated with seed treatment. Read and follow the safety instructions on the chemical treatment label.

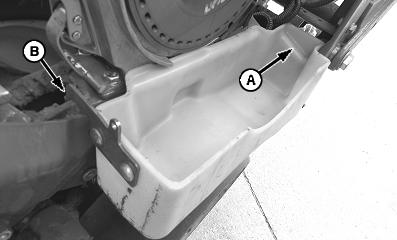

   Install the catch pan on the row unit with the plastic edge (A) in position near parallel arms.

---




3. Install the hooked plate (B) into the indented edge as shown.

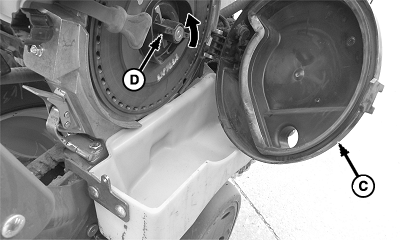

4. Open the meter cover (C), rotate the handle (D) into the unlocked position, and remove the seed disk.

5. Return the seed meter cleanout tray to storage position.
