Install Proper Drawbar Hitch Link (Drawbar Hitch Only)

1. IMPORTANT: If tractor has Category (Cat) 4 drawbar, it must be used with a Category 4 hitch link on implement. If tractor has Category 5 DC drawbar, it must be used with a Category 5 DC hitch link on implement.

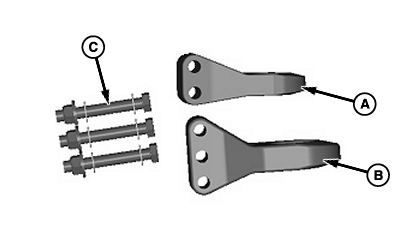

   A59628-UN-21MAR07

   A - Category 4 Hitch Link

   B - Category 5 Hitch Link

   C - Hitch Link Mounting Hardware

   Determine tractor drawbar category. Corresponding hitch link (A or B) must be installed on implement. See your John Deere Dealer for additional hitch link, if needed.

---




2. NOTE: Shim washers (B) must be used to remove excess play between hitch link and mounting plates.

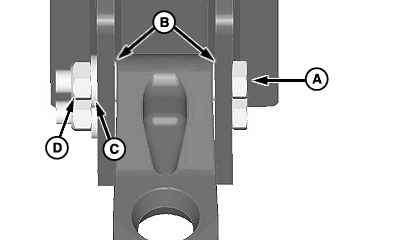

   A59629-UN-21MAR07

   Category 4 Hitch Link Shown

   A - Cap Screw (2 used Cat 4) (3 used Cat 5)

   B - Shim Washers (as required)

   C - Flat Washer (2 used Cat 4) (3 used Cat 5)

   D - Hex Nut (2 used Cat 4) (3 used Cat 5)

   Install correct drawbar clevis using cap screw (A), shim washers (B), flat washer (C), and hex nut (D).

---




3. Tighten cap screws and nuts to specification.

   Item	Measurement	Specification
   Hitch Link Mounting Cap Screws and Nuts	Torque	597 N·m (440 lb·ft)

4. Perform “Level the Machine” procedure to check implement hitch height.
