Zero the CCS™ Blower Pressure Gauge

  1. NOTE: To zero the monitor vacuum gauge, see your SeedStar™ Operator's manual.

    A51170
    A51170-UN-18NOV02

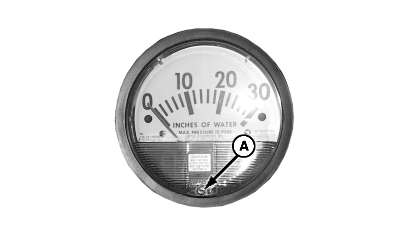

    A - Zero Adjusting Screw

    Shut off the CCS™ blower.


  2. With the vacuum gauge in a vertical position, disconnect the CCS™ blower monitor line to equalize the gauge with atmospheric pressure.

  3. Use the zero adjusting screw (A) to set the gauge pointer exactly on zero mark.

  4. Connect the monitor line.

SeedStar is a trademark of Deere & Company
CCS is a trademark of Deere & Company
