Clean the Liquid Fertilizer Tank Lid Fitting and Drip Line Hose

CAUTION:

A47834
A47834-UN-02AUG01

A49475
A49475-UN-27JUN02

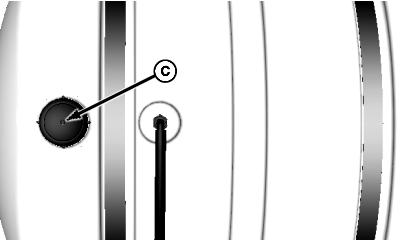

Top View Of Fertilizer Tank

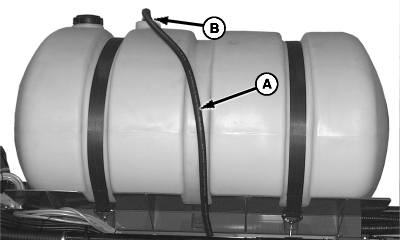

A - Hose

B - Fitting

C - Spring Loaded Check Valve

Do not service if system is under pressure. DO NOT remove tank lid to relieve pressure. Empty tank completely to relieve pressure either by reversing flow through nurse tank pump by operating machine, or pressing the spring loaded check valve on the center of the tank lid (C).

IMPORTANT: In dusty planting conditions it may be necessary to flush dirt and liquid fertilizer from lid fitting and drip line hose. A plugged hose causes an air lock and tank will not empty or fill.

Remove and flush hose (A) and fitting (B). Flush tank.
