Position Two-Point Hitch, Rockshaft Hitch Pins

1.
   A51106-UN-13NOV02

   Hitch Pins (Category 3A with Quick Coupler)

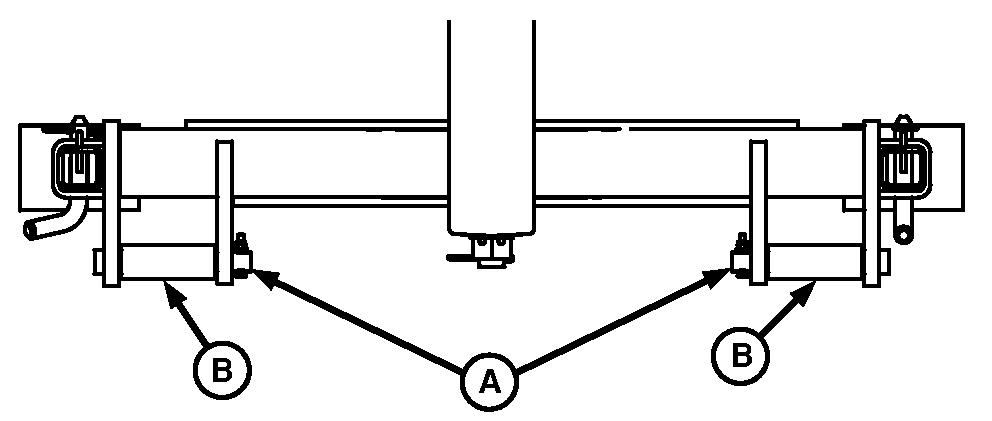

   A51105-UN-13NOV02

   Hitch Pins (Category 4N with Quick Coupler)

   A - Hitch Pins

   B - Bushings

   Position hitch pins (A) for tractor hitch being used.

---




2. Bushings (B) are required to attach the machine to the tractors with a category 4N hitch with quick coupler. For parts, see your John Deere™ dealer.

3. Verify that the correct bushings are installed for the tractor quick hitch category before attaching the planter.
