Transport Safely

A34331-UN-13OCT88

A53085-UN-23OCT03

Always raise the parking stand before transport.

Tractor brakes must be latched together.

Attach a properly sized safety chain at each drawbar connection.

Shift the tractor into a lower gear when transporting down steep slopes or hills.

Always travel at a reasonable and safe speed. (See Tow Loads Safely in this section.)

Never transport the machine when more than half full of product.

Always use flashing warning lights, both day and night, when transporting on a public roadway.

Keep all reflective material clean and visible.

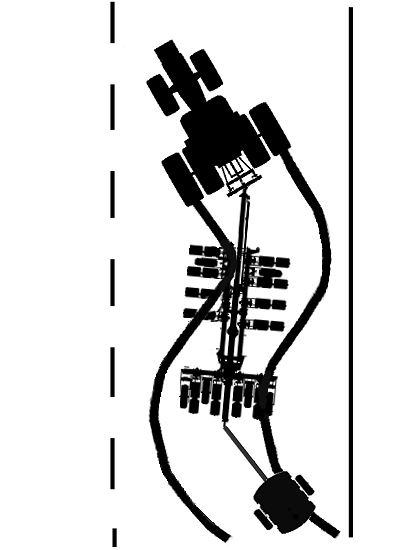

Prevent collisions between motorists and slow moving equipment on public roads. Frequently check for traffic from the rear, especially during turns. Use the turn signals.

Keep everyone clear of the machine.

For stability and operator safety, the tractor must be properly ballasted.

If the tractor has Roll-Gard™ Safety Canopy, keep the seat belt fastened.

Know the transport height and width of machine.

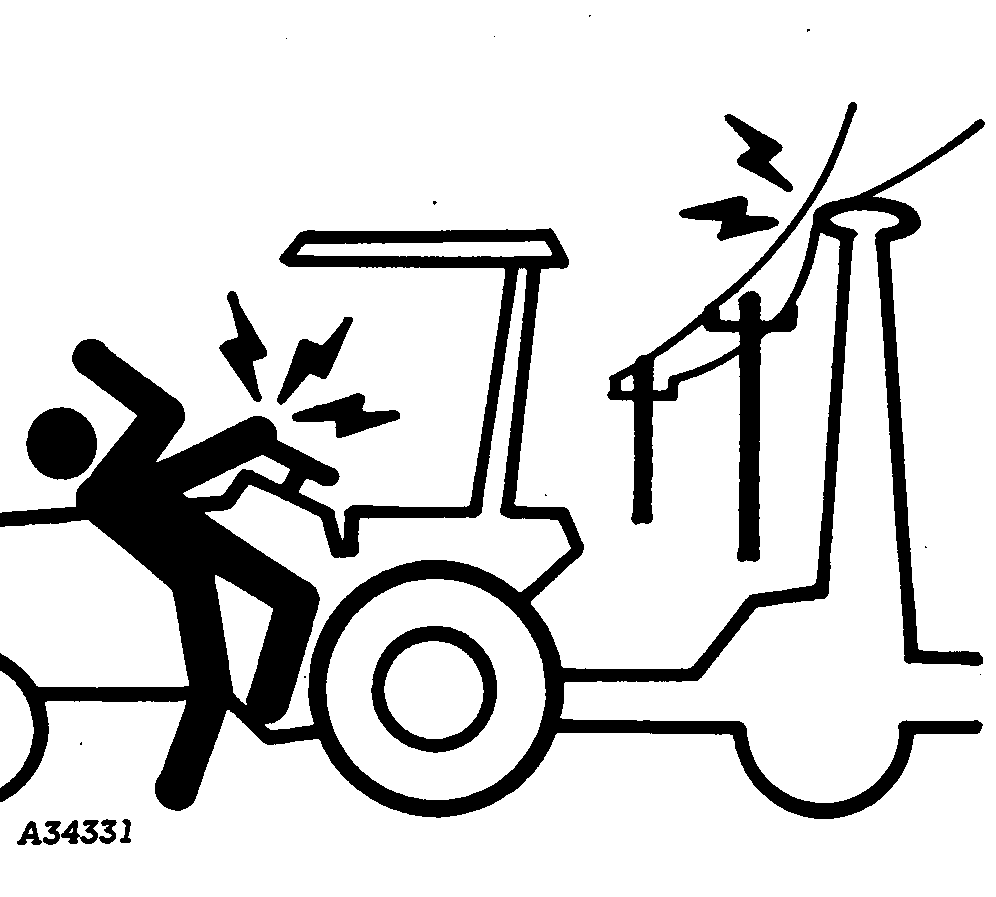

Avoid serious injury or death. Keep the marker arms away from overhead power lines. Proceed cautiously under overhead power lines and around utility poles. Know the transport height of machine.

The construction of this planter may not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it may be possible for this planter to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.
