Install the Tractor Power Generation System on Other Tractors

1.
   TS230-UN-24MAY89


   A87035-UN-31JUL15


   A87036-UN-31JUL15

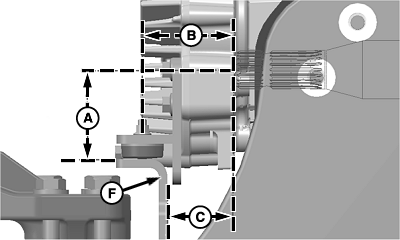

   A - 103 mm (4.05 in)

   B - 107 mm (4.21 in)

   C - 76 mm (3 in)

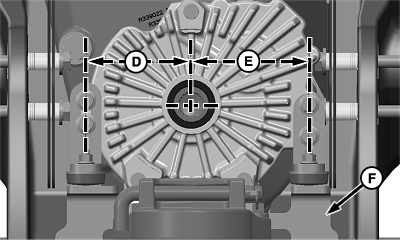

   D - 134 mm (5.28 in)

   E - 150 mm (5.91 in)

   F - Lower Support

   Place the tractor in park, turn off the engine, and remove the key.

---




2. Use dimensions (A—E) in graphic to fabricate a lower support (F) for installation of the gear case.

3. IMPORTANT: The lower support must fasten tightly to the tractor frame.

   Install the fabricated support on tractor.

4. IMPORTANT:


   A88356-UN-03NOV15

   Gear Case Oil

   A - Plug

   Verify that the gear case has oil.

   Place the gear case on a level surface with the vanes vertical (as shown). Remove the plug (A). Check the oil level in the gear case. Fill with approximately 0.5 L (17 fl oz) of John Deere™ Hy-Gard™ oil or until the oil is level with the bottom of the hole.

---




5.
   A87025-UN-31JUL15


   A87026-UN-31JUL15


   A87027-UN-31JUL15

   A - Temperature Harness

   B - Gear Case

   Install the temperature harness (A) on the gear case (B).

---




6.
   A87028-UN-31JUL15

   A - Gear Case

   B - PTO Shaft

   With the harness positioned behind the gear case as shown, install the gear case (A) onto the PTO shaft (B).

---




7.
   A87029-UN-31JUL15


   A87030-UN-27JUL16

   A - Support

   B - Gear Case

   C - Cap Screws

   Align the support (A) for attachment to the gear case (B).

---




8. Install the cap screws (C). Tighten the cap screws slightly, leave them loose enough for gear case adjustment.

9. Pry up on the gear case slightly, push down on the footing bracket, and then tighten the cap screws (A).

10. Remove the prying device.

11. IMPORTANT:


    A87031-UN-31JUL15

    A - Alternator

    B - Gear

    Avoid damage to the gear and shaft. Lubricate the gear every time the alternator is installed and annually.

    Lubricate the gear (B) on the alternator (A) with the specified lubricant every time the alternator is installed and annually.

    Item	Measurement	Specification
    Gear Grease	Type	Class GC-LB with 3 to 5% Molybdenum Disulfide

---




12.
    A87032-UN-31JUL15

    A - Alternator

    B - Gear Case

    C - Cap Screws, M12 x 45

    Install the alternator (A) onto the gear case (B) using the cap screws (C).

---




13.
    A87033-UN-31JUL15


    A87034-UN-31JUL15

    Planter Harness to Tractor Power Generator

    A - Alternator Connector

    B - Temperature Harness

    C - Alternator Connector

    D - Power Generation Harness

    Connect the temperature harness (B) to the alternator connector (A).

---




14. After the tractor is attached to the planter, connect the power generation harness (D) to the alternator connector (C).
