Tractor Power Generation

A87733-UN-21SEP15

The tractor PTO must be engaged and the engine speed over 1100 rpm for proper operation and response of the seed meters and the seed sensors.

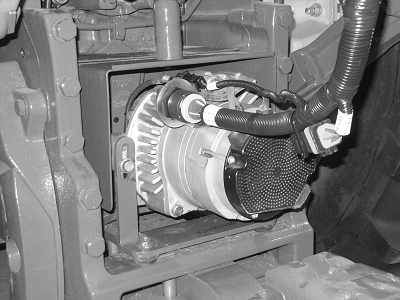

Verify that all the harnesses are connected to the alternator and tractor. The harness on the alternator provides the primary power. The other harnesses connect the tractor monitoring and other functions. (See the SeedStar™ manual for system operation.)
