Depressurize The Pneumatic Down Force System

1. NOTE:

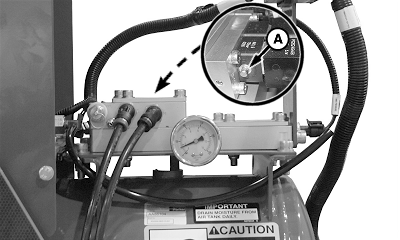

   A87674-UN-17SEP15

   Exhaust Manual Override

   A - Manual Override Button

   The location and orientation of the air reservoir varies based on the planter model. The procedure is similar for all planter models.

   Lower the planter to the planting position.

---




2. On the SeedStar™ monitor, reduce the down force pressure to 66 N (15 lb).

3. On the rear of the valve stack on the left-hand side, press the manual override button (A) to release the residual air pressure from the air springs.

4.

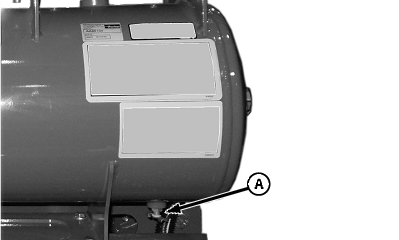

   A88550-UN-20NOV15

   A - Drain Valve

   Release the reservoir air pressure by opening the drain valve (A).

---
