Attach Drawbar Hitch Machine to Tractor

CAUTION: See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in Safety section before machine transport.

1. NOTE: It can be necessary to connect hydraulic hoses and move hitch into position.

   Back tractor to hitch.

2. IMPORTANT:

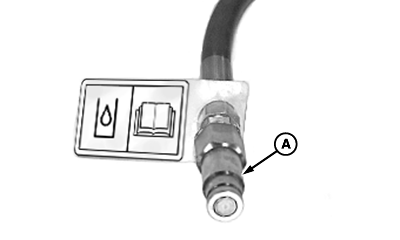

   A85599-UN-11MAR15

   Flush Face Case Drain Tip

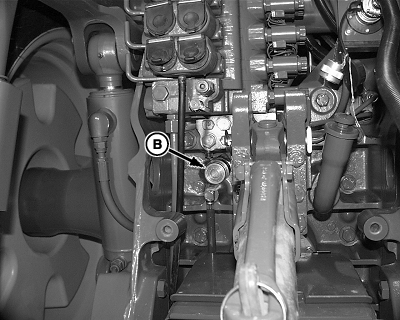

   A53855-UN-19FEB04

   8000 Series Tractor Shown

   A - Case Drain Hose

   B - Low-Pressure Drain Coupler

   Blower motor case drain hose must be attached to low-pressure drain connection before inlet and return hoses are connected. Case drain must have LESS THAN 172 kPa (1.72 bar) (25 psi) or blower motor damage occurs.

   IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not equipped.

   IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa (1.72 bar) (25 psi)), drain connection to these ports result in blower motor damage.

   Attach case drain hose (A) to tractor low-pressure drain coupler (B).

---




3. IMPORTANT: Check tractor hydraulic oil level after filling cylinders with oil for the first time.

   IMPORTANT: It is important to rephase hydraulic lift system before operating any other functions.

   NOTE: When machine is equipped with drawbar hitch and automatic markers, markers and hitch use the same hoses.

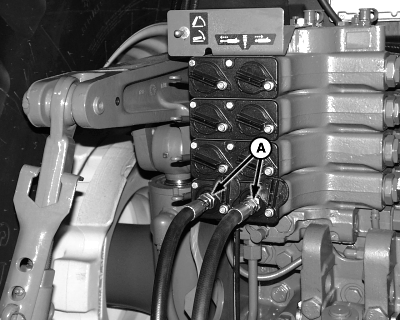

   A47128-UN-05MAR01

   8000 Series Tractor Shown

   A - Drawbar Hitch Hoses

   Attach drawbar hitch hoses (A) to tractor.

---




4. If necessary, raise or lower hitch to align with tractor drawbar.

   To raise or lower drawbar hitch, proceed as follows:

   1. Place Drawbar-Hitch control console switch in “Hitch” position.

   2. Activate marker selective control valve (SCV) to raise or lower drawbar hitch.

   3. When hitch is in proper position, place Marker-Hitch switch in “Marker” position.

5.

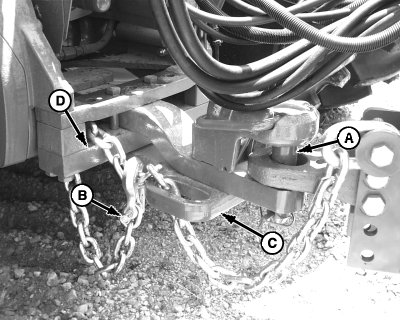

   A52383-UN-02JUL03

   8000 Series Tractor Chain Routing

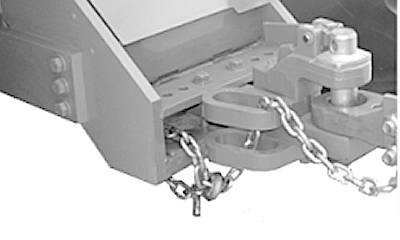

   A60201-UN-07JUN07

   9000 Series Tractor Chain Routing

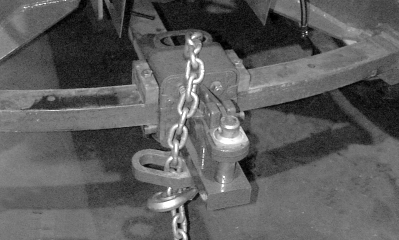

   A61819-UN-08JAN08

   9000T Series Tractor Chain Routing

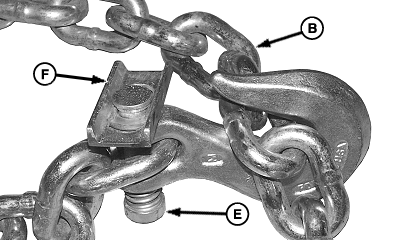

   A52496-UN-08JAN08

   Safety Lock Open


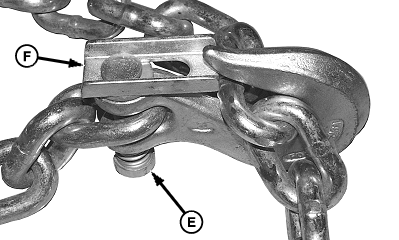

   A52497-UN-08JAN08

   Safety Lock Closed

   A - Drawbar Pin

   B - Safety Chain

   C - Loop

   D - Support

   E - Spring Latch

   F - Safety Lock

   Install drawbar pin (A) and secure.

---




6. Install safety chain (B) through loop (C) and drawbar support (D).

7. Press spring latch (E) and rotate safety lock (F) open.

8. Attach hook to chain between drawbar support (D) and loop (C).

9. Press spring latch (E) and rotate safety lock (F) into closed position.

10.

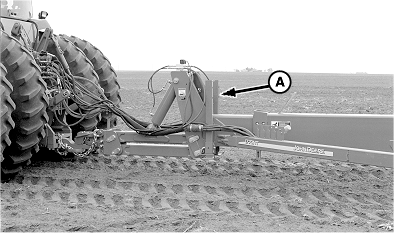

    A62725-UN-25JUN08

    A - Hitch Stands

    Raise hitch to remove weight from hitch stands (A).

---




11. Raise and secure hitch stands as shown.
