Attach Two-Point Hitch Machine to Tractor

1. CAUTION:


   A28093-UN-13OCT88

   Refer to the Safety section before machine transport.

   Raise both latch levers.

---




2.
   A47886-UN-31OCT01

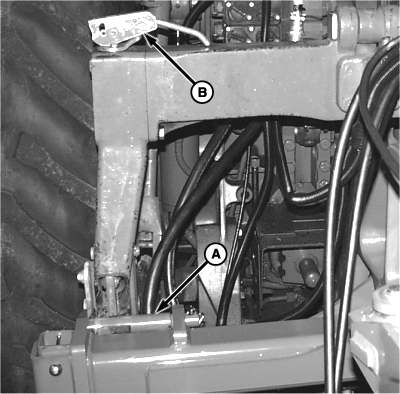

   A - Machine Hitch Pins

   B - Latch Levers

   Lower the rockshaft until the quick coupler hooks are lower than the machine hitch pins and slowly back the tractor up to the machine.

---




3. CAUTION: When latches are properly locked, handles are horizontal and against coupler frame.

   Raise the rockshaft enough to engage the machine hitch pins (A) in the quick coupler hooks. Push both latch levers (B) down to lock the machine to quick coupler.

4. After attaching machine to tractor, raise 3-point hitch.

5. IMPORTANT: Avoid damage to hitch stands and draft tubes while turning sharply. Remove hitch stands to avoid damage.

   NOTE: When installing drilled pin (A), handle of pin faces the front of machine.


   A52674-UN-26AUG03

   A - Drilled Pin

   B - Spring Lock Pin

   Raise and secure stands to hitch crossbar with drilled pin (A) and spring locking pin (B).

---




6. IMPORTANT:


   A85599-UN-11MAR15

   Flush Face Fitting


   A53855-UN-19FEB04

   8000 Series Tractor Shown

   A - Case Drain Hose

   B - Low-Pressure Drain Coupler

   Blower motor case drain hose must be attached to low-pressure drain connection before other hoses are connected. Case drain must have less than 172 kPa (1.72 bar) (25 psi) or blower motor damages occurs.

   IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not so equipped.

   IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa (1.72 bar) (25 psi)), drain connection to these ports results in blower motor damage.

   Route case drain hose (A) under quick coupler and attach to tractor low-pressure drain coupler (B).

---
