Inspect and Replace the Vacuum Motor

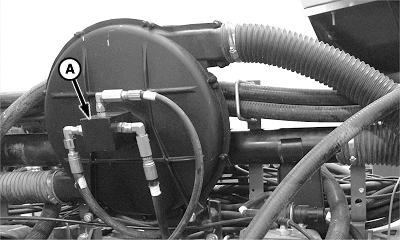

A85116-UN-29JAN15

A - Motor

A small amount of oil leakage is acceptable. If leakage occurs on the motor housing, check for loose hardware on the motor or loose fittings. If oil leakage is excessive or if vacuum levels cannot be maintained, replace the vacuum motor.
