Check the Hydraulic Air-Compressor Oil

CAUTION:

TS230
TS230-UN-24MAY89

A87494
A87494-UN-02SEP15

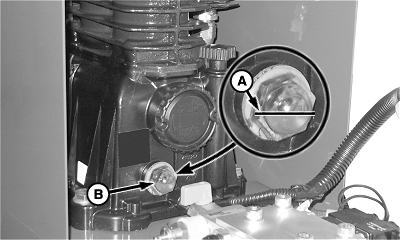

A - Middle

B - Sight Glass

Avoid injury. Deactivate the selective control valves (SCVs), turn off the tractor, and place the tractor in park before servicing.

IMPORTANT: Check the oil level at the beginning of the season and daily during machine use.

NOTE: Park the tractor and the machine on a level surface.

The proper oil level is in the middle (A) of the sight glass (B). Add oil as necessary. (See Fill or Change the Hydraulic Air Compressor Oil in this section.)

WP29706,00002F1-19-20160511
