Liquid Fertilizer Rate Charts for Systems with Injection Openers
To match the nozzle number on the rate chart to the number stamped on the nozzle, see the following table. For additional nozzles, see your John Deere dealer.
NOTE: Nozzle number can be found on the side of nozzle.
|
Single Disk Injection Nozzle Reference Chart |
|
|---|---|
|
Nozzle Number |
Rate Chart Number |
|
00015 |
1.5 |
|
00025 |
2.5 |
|
0005 |
5 |
|
0008 |
8 |
|
0012 |
12 |

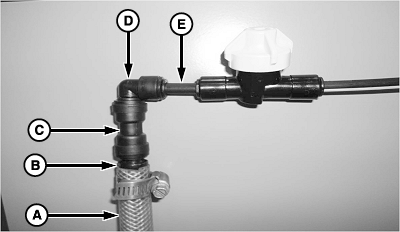

A73214-UN-28OCT11
A - 1/2 in Reinforced Hose
B - 1/2 in Barb to 3/8 in Stem Reducer
C - 3/8—5/16 in Reducing Coupler
D - 5/16 in Stem to 5/16 in Tube, 90 Degree Fitting
E - 2 in Piece of 8 mm or 5/16 in Tube
The in-line orifice should be removed when utilizing a single-disk injection opener. The tubing going to the opener is then inserted into the check valve using the fittings described in the picture.
A50571-UN-07OCT02
A - Reference Chart
Reference the following rate charts for the correct nozzle number to be used for the desired application rate. Chart decals (A) are also placed on the planter. The graphic is used only as an example of the location of the chart decal.|
