Remove and Install the ExactEmerge™ Seed Meter

Remove the Seed Meter and Hopper

IMPORTANT:

A78030-UN-27AUG13

A77783-UN-27AUG13

A83753-UN-29SEP14

A - Delivery Hose

B - Fill Neck

C - Clip

D - Latch

E - Hook

F - Vacuum Hose

G - Housing Tab

H - Bracket Base

1. Rotate the CCS™ seed delivery hose (A) counterclockwise until it unsnaps from the hopper fill neck (B) and pull off the hose.

2. Remove the vacuum hose (F).

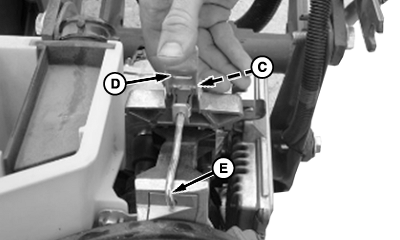

3. Push down on clip (C) while lifting on latch (D) to unlock the seed meter from the top area of the BrushBelt™ cartridge.

4. Remove the hook (E) from the slot in the meter tab.

5. Slowly remove the seed meter coupler from the drive motor shaft.

6. Remove the housing tab (G) from the bracket base (H).

Install the Seed Meter and Hopper

1.
   A83752-UN-29SEP14


   A77995-UN-27AUG13


   A83750-UN-29SEP14


   A83751-UN-29SEP14


   A77790-UN-27AUG13


   A77791-UN-27AUG13

   A - Housing Tab

   B - Bracket

   C - Seed Meter Assembly

   D - Motor Shaft

   E - Seed Meter Coupler

   F - Hook

   G - Tab

   H - Top Area

   I - Delivery Hose

   J - Fill Neck

   K - Vacuum Hose

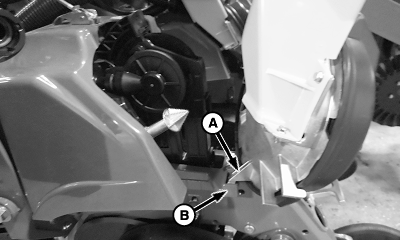

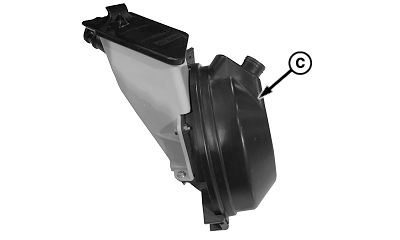

   Position the housing tab (A) into the bracket (B) of the seed meter assembly (C).

---




2. NOTE: Turn the driveshaft to align it with the coupler as needed.

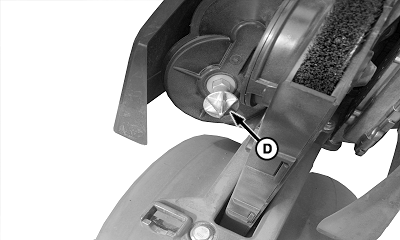

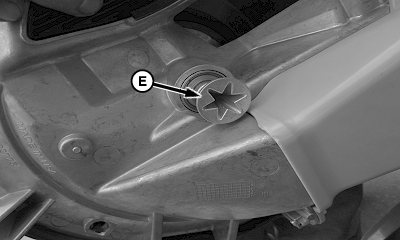

   Align the motor shaft (D) and the seed meter coupler (E) being careful to align the meter housing to the BrushBelt™ cartridge.

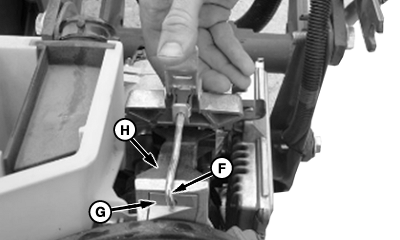

3. Position the hook (F) through tab (G) on the meter and the top area (H) of the BrushBelt™ cartridge.

4. Fasten the latch until the clip snaps.

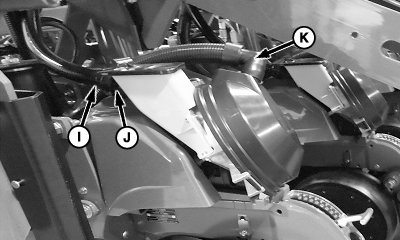

5. Push the CCS™ seed delivery hose (I) onto the hopper fill neck (J) and rotate it clockwise until it snaps into place.

6. Install the vacuum hose (K).
