Inspect The ExactEmerge™ Meter Unit
NOTE: If using seed treatments, remove any buildup occurring in the bottom of the hopper.

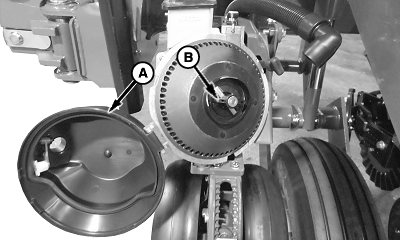

A77812-UN-27AUG13
A - Door
B - Meter Hub
To inspect the meter, lay the hopper on its side and open the door (A) to remove the seed bowl. Turn the meter hub (B) by hand to determine if the mechanism is free of dirt, chaff, or other foreign material. Inspect the brush for gaps, the hub seal for cracks and the vacuum seal for cracks and wear areas. If replacement is necessary, see the Service And Adjustments section.|
