Remove Seed Bowl

1. CAUTION:

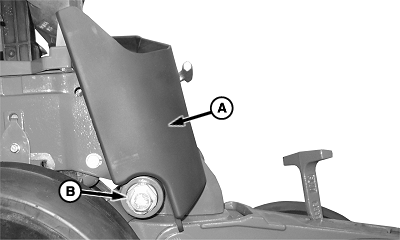

   A82483-UN-02MAY14


   TS220-UN-15APR13

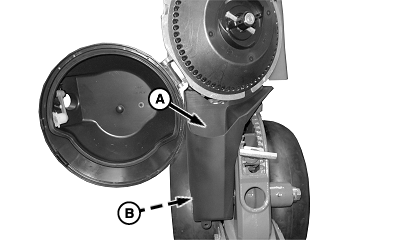

   A82484-UN-02MAY14

   A - Cleanout Tray

   B - Gauge Wheel Arm

   Use caution if using seed treatments when opening meter doors. Chemicals cause eye, skin, or breathing problems. Wear mask, gloves, and goggles. Read and follow safety instructions on the chemical supplier label.

   Install seed meter cleanout tray (A) by seating it on gauge wheel arm (B) of row unit as shown.

---




2.

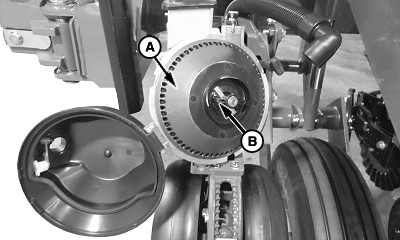

   A78022-UN-27AUG13

   A - Bowl

   B - Handle

   Open vacuum meter dome.

---




3. Rotate spindle handle (B) until it aligns with slots in seed bowl (A).

4. Pull seed bowl from spindle.

5. Return seed meter cleanout tray to storage position.
