Adjust the Double Eliminator

1.
   A87493-UN-02SEP15

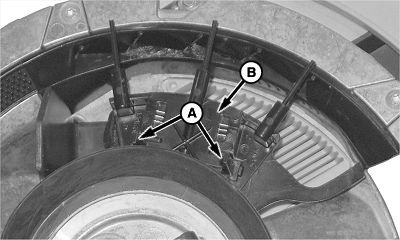

   A - Tabs

   B - Double Eliminator

   Open the seed meter cover and remove the seed bowl.

---




2. Squeeze the tabs (A) on the double eliminator (B).

3. NOTE: To retain the new position, release the tabs on the double eliminator and verify that the tabs snap into a locked position.


   A83318-UN-18AUG14


   A83319-UN-18AUG14

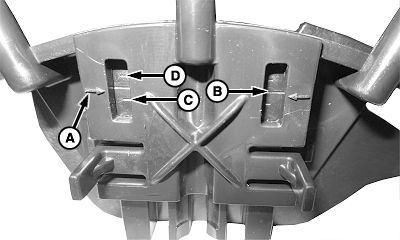

   A - Pointer

   B - Standard Position

   C - Less Aggressive Position

   D - Aggressive Position

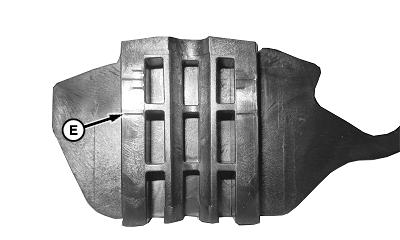

   E - Soybean Position

   Slide the eliminator until the pointer (A) is level with the adjustment line required.

   Double Eliminator Positions
   .Position	Seed	Setting
   B	All approved crops except soybeans.	Standard
   C	All approved crops except soybeans.	Less Aggressive
   D	All approved crops except soybeans.	Aggressive
   E	Soybeans	Disengaged If the number of soybeans exceed 7700 per kg (3500 per lb), use the less aggressive position (C).

   • The middle position (B) is the standard position for most crops.
   • NOTE: If skips are present, first verify that the knock out wheel is engaged with the holes in the seed bowl. (See Knockout Wheel Operation in this section.)
     NOTE: If multiples are present, first verify whether the double eliminator Tines or Brushes are worn down and needing replacement. (See Inspect and Service the Meter in the ExactEmerge™ Service and Adjustments.)
     If the monitor shows that skips are occurring and increasing the vacuum does not help, use position (C).
   • If the monitor shows that multiples are occurring and decreasing the vacuum does not help, use position (D).
   • Disengaged position (E) is for soybeans.



---

NOTE:

A83320-UN-18AUG14

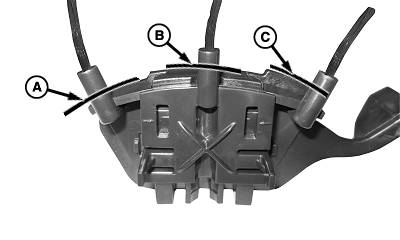

A - Left Side of Support

B - Middle of Support

C - Right Side of Support

When reading the pointer position is difficult, use the top of the double eliminator in relation to the rear support as an indicator of position.

• The left side of the eliminator is level with the left side of the support (A) when in a less aggressive position.
• The middle of the eliminator is level with the middle of the support (B) when in the standard adjustment position.
• The right side of the eliminator is level with the right side of the support (C) when in an aggressive position.
