Install the Seed Bowl

1.

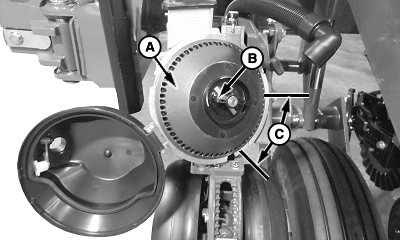

   A78024-UN-27AUG13

   A - Seed Bowl

   B - Hub Handle

   C - Section

   Open the meter.

---




2. Fit the seed bowl (A) into the housing. Hold the seed bowl stationary and rotate the hub handle (B) into the locked position.

3. Inspect the hub adjustment. (See Adjust Meter Hub Height in this section if the following conditions are not met.)

   □  Move the seed meter assembly away from the motor drive and verify that there is light contact between the bowl and the meter housing in section (C) as the bowl is rotated.

   □  Verify that no seed loss occurs through any gap in section (C) as the bowl is rotated.
