Adjust the Meter Hub Height

A78025
A78025-UN-27AUG13

A - Hub Handle

B - Housing

Improve meter accuracy and minimize seed damage with a properly adjusted meter hub. Check this adjustment whenever a seed bowl is changed. If there is a gap between the seed bowl and the meter housing (B) or if the bowl is difficult to turn, adjust the meter hub as follows:

  1. Open the meter.

  2. Turn the hub handle (A) counterclockwise. Remove the seed bowl.

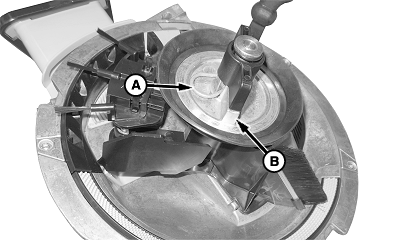

  3. A82528
    A82528-UN-09SEP14

    A - Spring Clip

    B - Vacuum Meter Hub

    Remove the spring clip (A).


  4. Adjust the meter hub (B).

    • Make small adjustments.
    • Thread the meter hub (B) clockwise to move the seed bowl closer to the meter housing.
    • Thread the meter hub (B) counterclockwise to move the seed bowl away from the meter housing.

  5. Align the slot in the hub with the hole in the shaft and install the spring clip (A).

  6. A78027
    A78027-UN-27AUG13

    A83680
    A83680-UN-12SEP14

    Storage

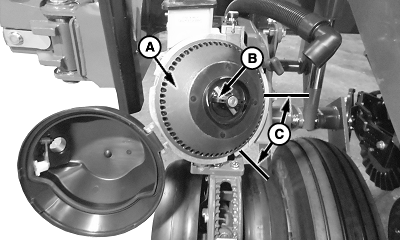

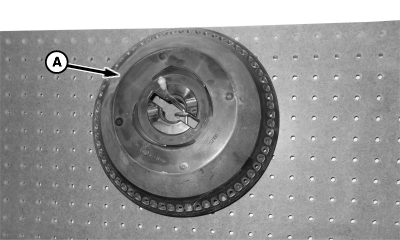

    A - Seed bowl

    B - Hub Handle

    C - Area

    Install the seed bowl (A) and lock the hub handle (B).


  7. Inspect the adjustment.

    1. Release and lean the meter assembly away from the motor drive. Rotate the hub handle clockwise. If the hub handle clicks out of the detent in the forward clockwise direction while attempting to rotate, the hub is too tight. Loosen 1-2 holes on the spindle.

    2. Repeat the hub adjustment until it is correct.

  8. IMPORTANT: Avoid warped bowls. Do not store the bowls in the meters. Do not store the bowls under heavy items or hang them from the seed cell. Store them away from high heat and sunlight.

    Release and lean the meter assembly away from the motor drive. Rotate the seed bowl slowly by hand and observe the bowl contact with the housing in area (C). While rotating, inspect for a gap large enough for a seed to wedge between the seed bowl and the housing. If a gap is apparent then seed bowl replacement is recommended.
