Install The Knockout Wheel Assembly

1. IMPORTANT: Damage to the knockout wheel occurs when the Runoff function is performed without installing the seed bowl.

   NOTE:


   A82565-UN-08MAY14


   A77896-UN-27AUG13


   A82575-UN-09MAY14


   A82567-UN-08MAY14

   A - Knockout Wheel

   B - Clip

   C - Fastener

   D - Knockout Assembly

   E - Tab

   F - Slot

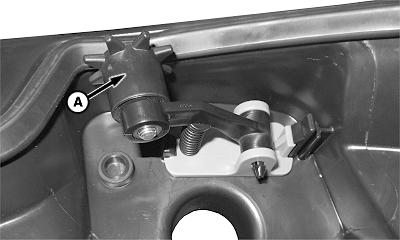

   The knockout wheel (A) is used to ensure that the seeds are fully released from the vacuum hole. Wheel projections engage the vacuum holes to eject all of the seeds and foreign material from the seed cell.

   Open the meter. (See Clean Out The Vacuum Meter in this section.)

---

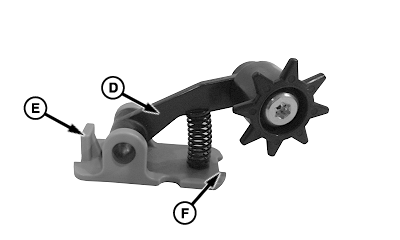

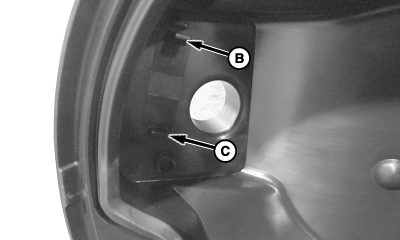

2. Install the knockout assembly (D) by sliding slot (F) into position under fastener (C).

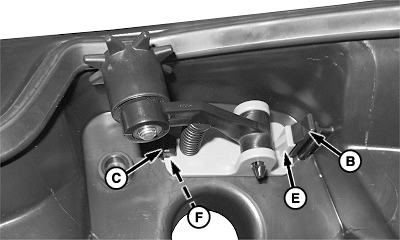

3. Slightly pull back on clip (B). Position tab (E) and release clip. Verify that the clip locks over position of tab as shown.

   NOTE: When closing the dome, verify that the wheel is aligned with the row of seed cells on the seed bowl.
