Change The Double Eliminator and The Baffle Brush

1.

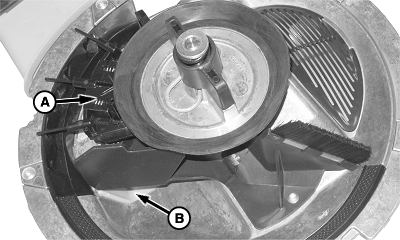

   A87489-UN-02SEP15

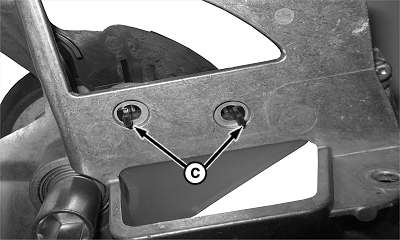

   A79998-UN-05FEB14

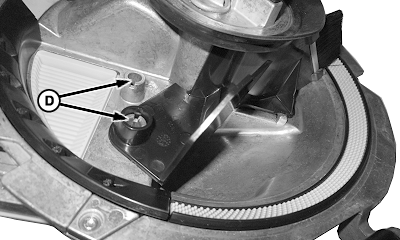

   A82359-UN-16APR14

   A - Inner Double Eliminator Assembly

   B - Hopper Opening

   C - Tabs

   D - Holes

   Remove the seed meter from the row unit. (See Remove and Install The ExactEmerge™ Seed Meter in this section.)

---




2. Open the vacuum meter. (See Access The Vacuum Meter in this section.)

3. Remove the seed disk. (See Clean Out The Vacuum Meter in the ExactEmerge™ Meter Operation section.)

4. Inspect the double eliminator for wear and replace it as needed.

5. NOTE: The Mini-Hopper has been removed from the back of the meter housing to see the inner double eliminator tabs.

   To remove and replace the inner double eliminator assembly (A):

   • Reach fingers inside the hopper opening (B).
   • Squeeze the tabs (C) to the unlock position.
   • Pull out the double eliminator assembly.
   • Replace the assembly by installing the tabs into the housing holes (D).
   • Repeat these steps on each seed meter as needed.



6.

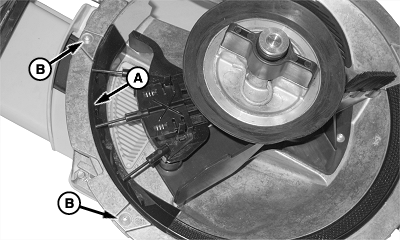

   A87490-UN-02SEP15

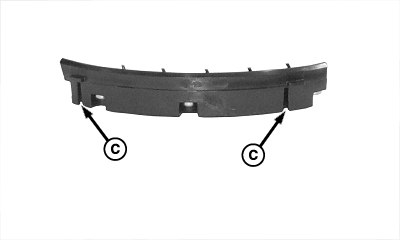

   A87491-UN-02SEP15

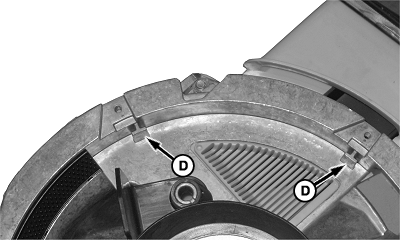

   A87492-UN-02SEP15

   A - Outer Double Eliminator Assembly

   B - Torque Screws

   C - Slot

   D - Housing Post

   To remove and replace the outer double eliminator assembly (A):
   • Remove the torque screws (B) and the plates.
   • Pull out the double eliminator assembly.
   • Align the slots (C) with the housing posts (D). To install, push the replacement assembly down into the meter housing.
   • To retain the assembly, tighten the torque screws (B).
   • Repeat these steps on each seed meter as needed.



---




7.

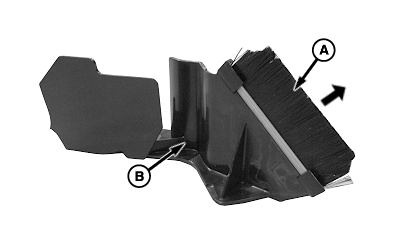

   A82357-UN-09SEP14

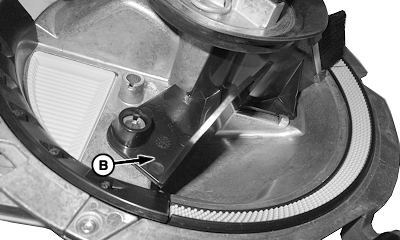

   A82356-UN-16APR14

   A - Baffle Brush

   B - Baffle

   To remove and replace the baffle brush (A):
   • Gently pull the baffle brush (A) from the baffle (B).
   • Press the replacement brush into the baffle.
   • Repeat these steps on each seed meter as needed.



---
