Access and Check Batteries (If Equipped With Hydraulic EPG)

TS230
TS230-UN-24MAY89

A82413
A82413-UN-22APR14

A visual inspection of the planter batteries is intended to find and correct potential problems before serious safety and operational concerns occur. A battery is a perishable item that requires periodic maintenance. Life of a battery is extended with a reasonable amount of care.

  1. Park the vehicle safely. (See Parking Safely in the Safety section.)

  2. Engage parking brake, shut off engine and remove key.

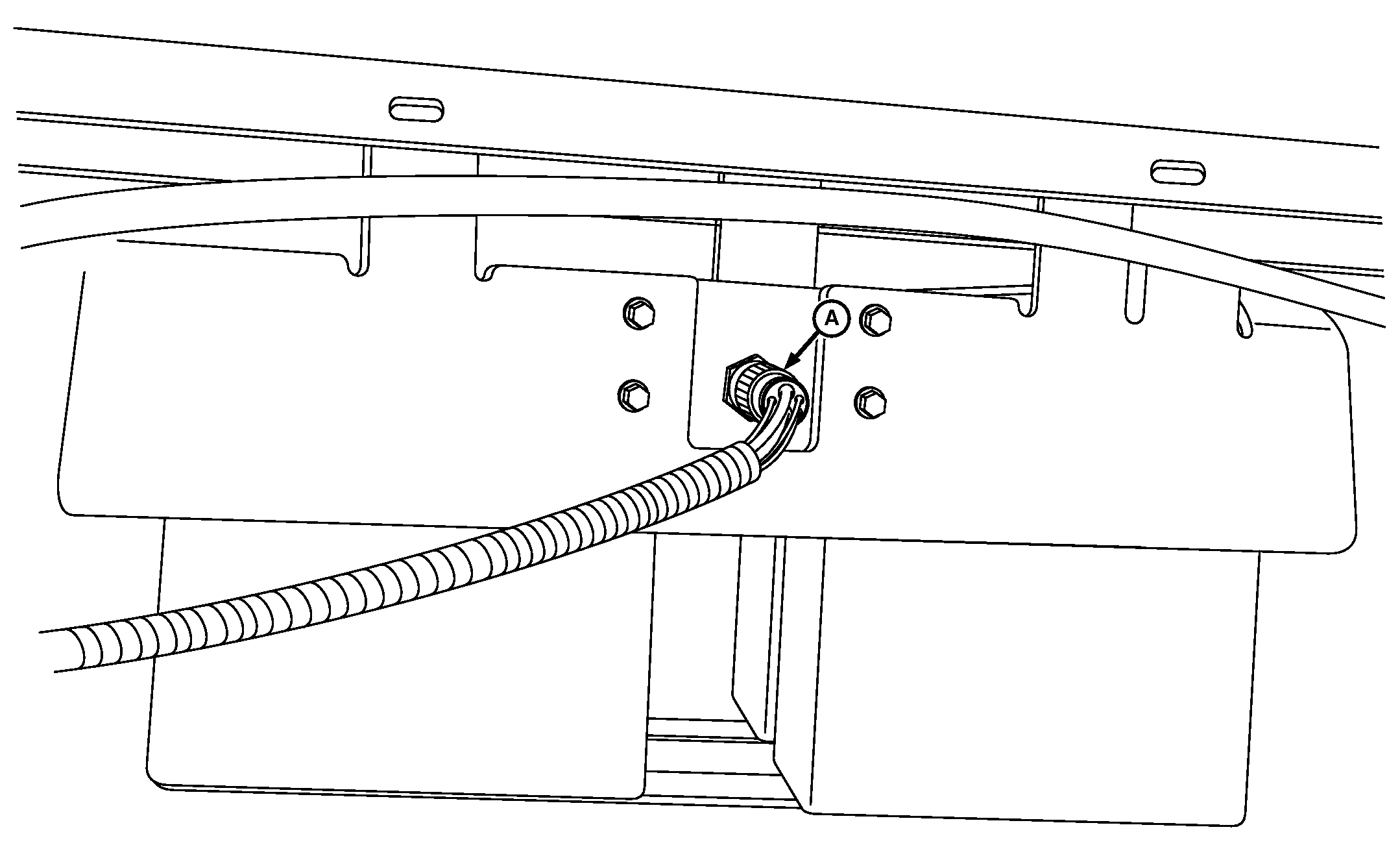

  3. A83741
    A83741-UN-30SEP14

    A - Connector

    Remove harness connector (A) from outside of battery container.


  4. CAUTION:

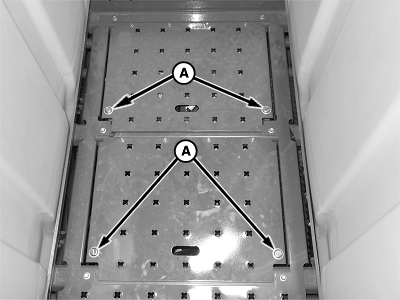

    A82465
    A82465-UN-01MAY14

    A - Latches

    Help prevent serious injury from an electrical shock. This planter is equipped with a 56 V electrical system which is able to pass high-voltage electrical current. Always use extreme caution when servicing this machine.

    Help prevent serious injury from battery explosion. Connect the battery wiring properly to avoid a short circuit or spark.

    To open CCS™ platform door, turn latches (A). Lift the door to expose the battery cover.

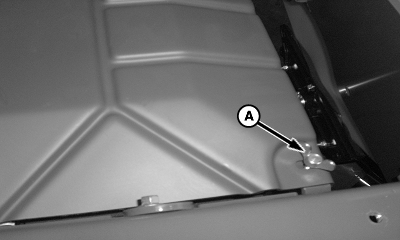

  5. A80310
    A80310-UN-04MAR14

    A80311
    A80311-UN-04MAR14

    A - Wing Screws

    B - Battery Cover

    Remove and retain wing screws (A) from battery cover (B).


  6. Remove and retain battery cover.

  7. IMPORTANT:

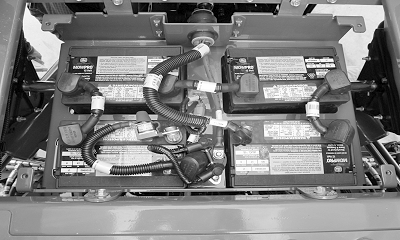

    A83745
    A83745-UN-26SEP14

    Avoid system malfunctions, machine damages, and fires. Any damage to battery case or terminals are possible signs that the terminal connections are loose.

    Visually inspect the batteries before a charger is placed on the planter batteries.

    Visually inspect all batteries for the following:

    • Discolored or melted terminal boots.
    • Burn spots.
    • Dirt or corrosion on or around the battery terminals.
    • Damage to battery case or terminals.
    • Leakage of electrolyte.
    • Broken or frayed cables.

      To determine which batteries need charging after a visual inspection, check voltage levels on each battery with a multimeter.

    • If battery voltage is 11—12 V, no extra charge is needed.
    • If battery voltage is 0—10 V, the battery needs charged.


  8. After a visual inspection or repairs are complete, perform the following:

    • Install battery cover and wing screws.
    • Close CCS™ platform door and turn latches back to original positions on planter.
    • Install previously removed harness connectors on outside of battery container.

CCS is a trademark of Deere & Company

WP29706,0000752-19-20150929
