Information Decal and Tag Locations

SSN408933-UN-23SEP15

Direct spray from high-pressure washers damages electrical components. Use caution, when power washing machine.

A85534-UN-09MAR15

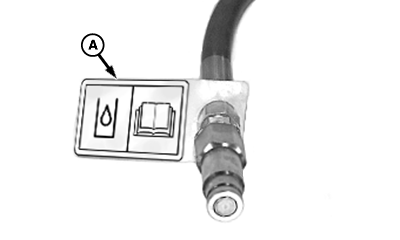

A - Decal, Case Drain

Hydraulic motor case drain line.

This hose must be connected during hydraulic motor operation to avoid motor failure.

(See Low-Pressure Case Drain Connection in Preparing Tractor section.)

A74116-UN-27JAN12

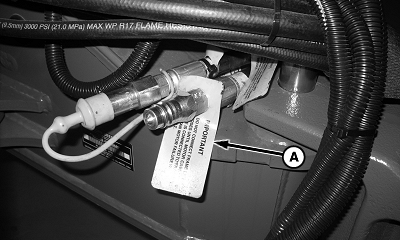

A - Tag, Frame Hose

Avoid hydraulic motor failure. Do not connect frame lift hoses until motor case drain line is connected to tractor.

(See Preparing Machine section.)

A82127-UN-28MAR14

12 and 16 Row

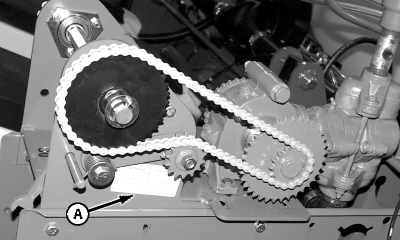

A - Fertilizer Pump Range

A82129-UN-31MAR14

12 and 16 Row

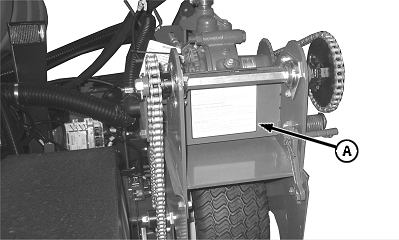

A - Fertilizer Pump, Store, and Prime

Important

Lubrication

1. Pump is shipped filled with oil. At initial start-up and daily afterwards, check oil level.
2. Single piston pump: Fill with TY6296 SAE 80/90 W EP oil or equivalent to oil port level.
3. Double piston pump: Fill both cavities with non-detergent SAE 30 oil to check plug level.
4. Fill pump lube fittings with multipurpose grease every 10 operating hours.

Prevent damage to pump

1. Keep pump filled with fluid always.
2. Protect from freezing - see overnight storage above freezing temperatures information.
3. Remove drive chain when not in use.

Overnight storage above freezing temperatures

1. Clear liquids with steady or rising temperatures: Leave pump and hoses filled with solution.
2. Clear liquids with falling temperatures (solution may precipitate out): Fill pump with water and leave filled (do not admit air).
3. Suspension fertilizer: This system not recommended for use with suspension fertilizers.

Extended storage (over 1 week) including winter storage Refer to Frame Decal and Operator Manual.

Important

Pump priming

1. Open shutoff valve at tank and strainer.
2. Set pump at maximum rate
3. High-pressure system with unit-mounted single disk fertilizer openers: Disconnect one opener hose unless using no. 12 nozzles. Skip this step when priming high-pressure system at solution application rate and travel speed for nozzle in use. High-pressure system with orifices: Remove one orifice unless using largest orifice. Also, may crack manifold valve if available on system. Low-pressure flow divider system: No action required.
4. Partially fill tank with water and check system for leaks.
5. Lower machine to planting position and drive 90—180 m (100—200 yd) at planting speed.
6. Fully charge system to eliminate all air bubbles. Air bubbles prevent even application. Repeat steps 5 and 6 until all air bubbles are flushed from lines.
7. Remove strainer screen and check for foreign material. Clean if necessary.
8. Reconnect hose, close valves, or install orifice removed in step 3.
9. Select fertilizer rate using rate charts.
10. For any delayed restart, check application lines for air bubbles and prime system as necessary.

    (See Priming and Initial Start Up of Pump in Liquid Fertilizer System section.)

A82202-UN-02APR14

24 Row Fixed Rate Fertilizer

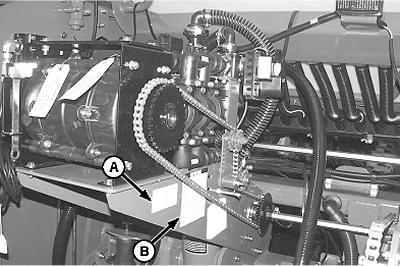

A - Pump Range

B - Store and Prime

A50571-UN-07OCT02

Optional Tank Location

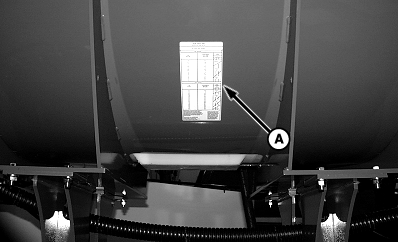

A - Fertilizer Rate Decal

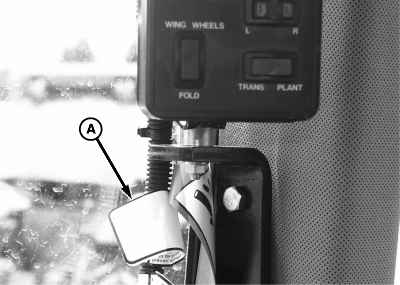

A74114-UN-27JAN12

A - Decal, Hydraulic Instruction

Transport to plant:
1. Place transport switch in Trans position, hold wing wheel switch, operate SCV lever to extend wing wheels completely to field raise position (complete cycle).
2. Place transport switch in Trans position, hold fold switch, operate SCV lever to unfold planter.
3. Place transport switch in Plant position, operate SCV lever to lower machine to plant position.

   Note: Avoid an unlevel frame. Do not stop step 1 before cycle is complete. To correct an unlevel frame, lower machine completely with transport switch in Plant position.

   (See Unfold and Fold Machine in Operating Machine section.)

Lower to plant while folded:

1.
   A74114-UN-27JAN12

   A - Decal, Hydraulic Instruction

   Place transport switch in Trans position, hold wing wheel switch, operate SCV lever to extend wing wheels to field raise position (complete cycle).
2. Place transport switch in Plant position, operate SCV lever to lower machine to plant position (complete cycle).

   Note: Avoid an unlevel frame. Do not stop step 1 or step 2 before cycle is complete. To correct an unlevel frame, lower machine completely with transport switch in Plant position.

   (See Raise or Lower Machine in Operating Machine section.)

A74115-UN-27JAN12

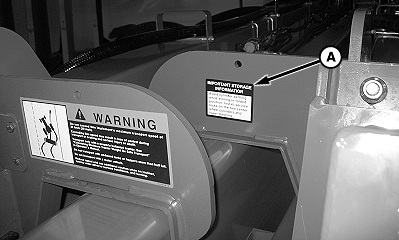

A - Decal, Important Storage Information

Avoid cylinder settling while stored in folded position. Install service locks on the two center wheel cylinders and lower machine.

(See Storing Machine in Storage section.)

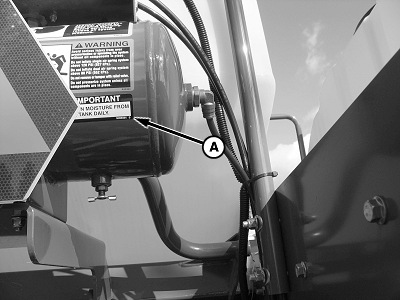

A74120-UN-27JAN12

A - Decal, Air Tank Drain

Drain moisture from air tank daily.

(See Drain Air Storage Tank in Integrated Pneumatic Down Force section in your SeedStar™ 3 HP Monitor Manual.)

A75388-UN-07JUN12

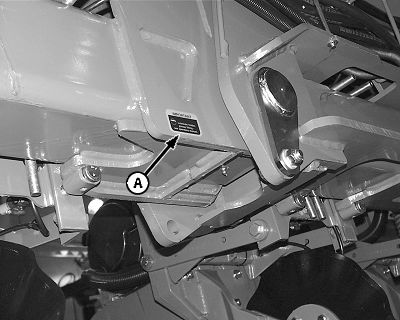

Wing Flex

A74119-UN-27JAN12

Marker

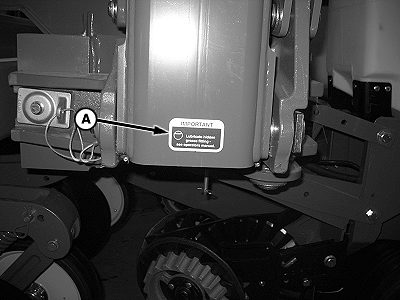

A - Decal, Lube Fittings

Lubricate hidden grease fitting.

(See Lubrication Intervals in Machine Lubrication section in Operator Manual.)

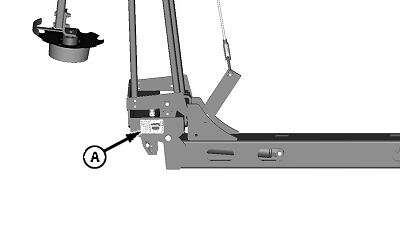

A80379-UN-08APR14

24 Row Marker

A - Shear Bolt Label

1. Install new shear bolt (A) and nut. Do not tighten now.
2. Adjust bolt (B) until slack is removed and links (C) are in a straight line.
3. Turn bolt (B) an extra one quarter turn and tighten nut.
4. Tighten shear bolt (A) with nut and lock with nut.

(See Replace 24 Row Breakaway Bolt in Service and Adjustment section.)

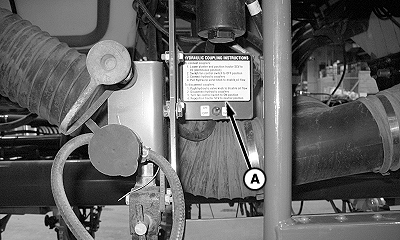

A74117-UN-27JAN12

A - Decal, Hydraulic Coupling Instruction

1. Lower planter and position tractor SCV to forward detent (continuous position).
2. Switch fan control switch to OFF position.
3. Connect hydraulic couplers.
4. To enable oil flow, pull hydraulic valve knob.

To disconnect couplers:

1. To disable oil flow, push hydraulic valve knob.
2. Disconnect hydraulic couplers.
3. Turn fan control switch to ON position.
4. Reposition tractor SCV to neutral position.

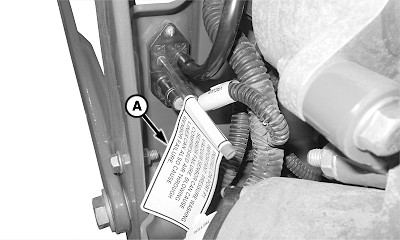

A84471-UN-05DEC14

A - Decal, Vacuum Sensor

Pressure washing vacuum sensor causes sensor failure. Blowing compressed air through lines also causes sensor failure.
