Hydraulic Connections Recommendations

A82588-UN-23MAY14

Tractor Valves

A82585-UN-15MAY14

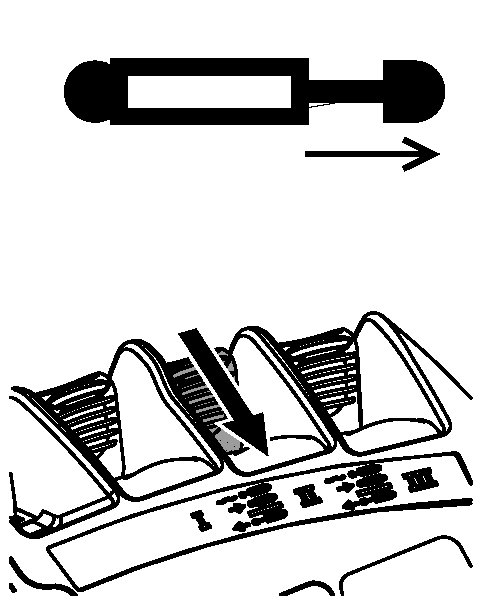

Extend

A82586-UN-15MAY14

Retract

A82587-UN-15MAY14

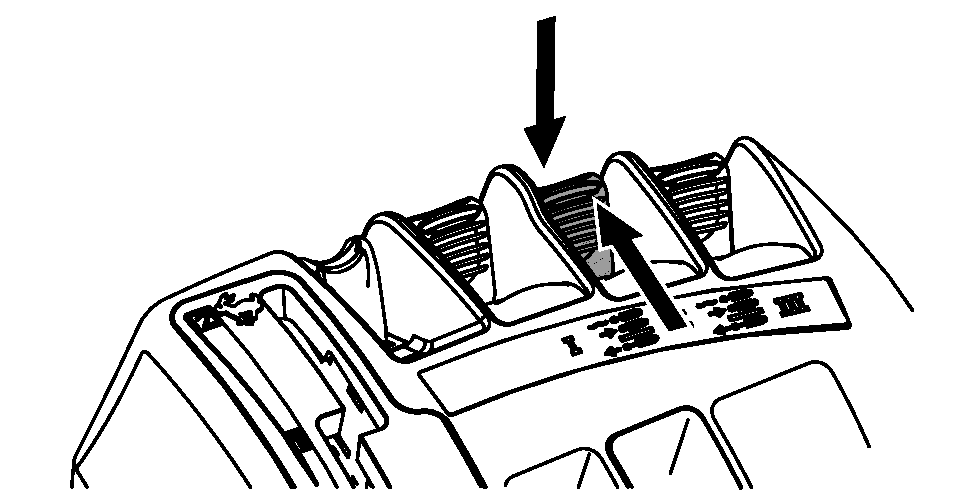

Float

The Extend and Retract symbols are on the tractor selective control valve (SCV) cover.

Refer to the tractor operator's manual for specific hydraulic operational details.

CAUTION: Avoid hydraulic hose failure due to physical damage, kinks, age, and exposure. Inspect hoses regularly. Replace damaged hoses.

IMPORTANT: Avoid motor seal damage. Connect the case drain hose before any other hose. Connect return hoses to a tractor “extend” SCV.

Avoid motor seal damage. Move tractor SCV lever to float (not neutral) position to shut off vacuum.

NOTE: Port locations for pressure, return, and load-sense vary by tractor model. (See your tractor manual.) Power beyond hydraulic flow is active when the tractor engine is running.

NOTE: IRHD (Hydraulic Down Force) if equipped, must be connected to the power beyond circuit.

NOTE: Individual Row Hydraulic Downforce (IRHD) is active when the tractor engine is running.

Hose Connections						Function Settings For John Deere ™ Tractors
Tractor SCV	SCV Color	SCV Port	SCV Symbol	Hose Tag	Implement Function	Flow	Detent (Time)
	Yellow			“Case Drain”	Non-pressurized hydraulic return Connect case drain before any other hose.
Power Beyond	Red	“P” Pressure		Connect Electric Power Generation (EPG) hoses (if equipped) to the power beyond circuit unless the tractor is not equipped with power beyond couplers, then use an extra SCV. Frame Weight Distribution (if equipped) is powered by the power beyond circuit. Independent Row Hydraulic Downforce (if equipped) is powered by the power beyond circuit.
	Black	“R” Return
	Orange	“LS” Load Sense
I	Green	A	Extend	“Frame Press”	Frame Functions	10 Maximum	3—10 seconds depending on desired lift height
		B	Retract	“Frame Ret”	Frame Functions		Continuous “C”
II	Blue	C	Extend	“Mark Press”	Independent Marker Raise (if equipped)	Start at 5 and adjust as necessary	10 seconds or as required for full extend and retract
		D	Retract	“Mark Ret”	Independent Marker Lower (if equipped)
III or Other	Brown	E	Extend	“Vac Ret”	Vacuum, Hydraulic Return	When using vacuum automation, set flow at 7. During manual vacuum operation, set flow at 4 and adjust as necessary.	Continuous “C”
		F	Retract	“Vac Press”	Vacuum, Activate
			Float		Vacuum, Deactivate
IV or Other	Black	G	Extend	“EPG Ret”	EPG, Hydraulic Return	10 Maximum	Continuous “C”
		H	Retract	“EPG Press”	EPG, Activate (If Equipped)
