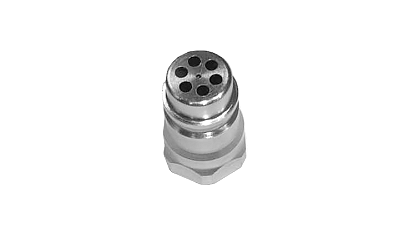

Hydraulic Motor Return Coupler

A53457
A53457-UN-02MAR04

All hydraulic motors are equipped with a special coupler on the return hoses.

Each return coupler has a check valve that prevents the motor from turning backward.

IMPORTANT: Avoid a pressure spike. Use the recommended procedure to connect and deactivate hydraulic motors.

Place the selective control valve (SCV) in "Float" position to deactivate hydraulic motors. (See Hydraulic Connection Recommendations for more information.)

WP29706,00007F1-19-20150617
