Liquid Fertilizer without John Deere™ Openers

NOTE:

A74994
A74994-UN-30MAR12

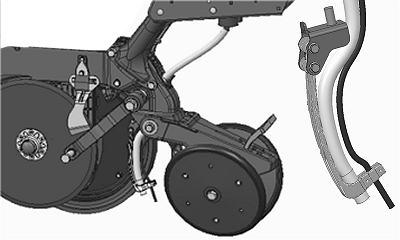

Valve Location With Unit Mounted Openers

A86695
A86695-UN-09JUN15

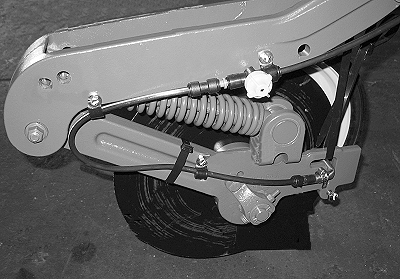

John Deere™ In-Furrow Fertilizer

A75012
A75012-UN-04APR12

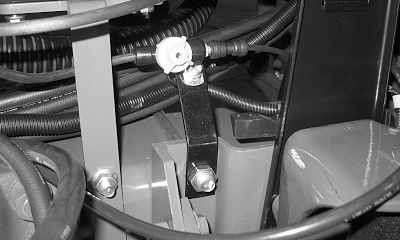

Valve Location with Frame Mounted Openers

When using the John Deere™ fertilizer distribution with aftermarket openers, position the check valves as close as possible to the openers.

(See your John Deere™ dealer for more information.)

NOTE: John Deere™ unit mounted and frame-mounted openers are shown for reference. John Deere™ in-furrow distribution is available from your dealer.

John Deere is a trademark of Deere & Company

WP29706,00008B2-19-20161215
