Seed Meter Settings
A93831-UN-21NOV16

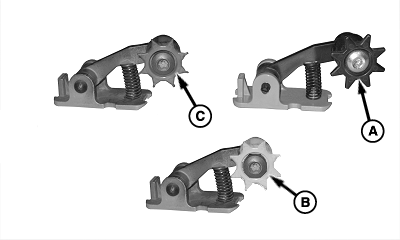

Wheel A, Wheel B, and Wheel C
A - Wheel (Black)
B - Wheel (Yellow)
C - Wheel (Green)
NOTE: See Double Eliminator Adjustments about crop position adjustments for three tine double eliminator.
|
Corn Meter Setup Recommendations |
|
|---|---|
|
Item |
Description or Setting |
|
Seed Bowl |
A92777 |
|
5 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
|
Meter Strip |
Agitation |
|
Knockout Wheel |
Wheel A AA85925 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
|
<2 645 (<1 200) |
23 +/- 6 |
|
3 525 (1 600) |
20 +/- 8 |
|
4 410 (2 000) |
18 +/- 6 |
|
>5 290 (>2 400) |
16 +/- 4 |
|
Soybeans Meter Setup Recommendations |
|
|---|---|
|
Item |
Description or Setting |
|
Seed Bowl |
A103836 |
|
5 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator Position |
Disengaged |
|
Meter Strip |
Smooth |
|
Knockout Wheel |
Wheel A AA85925 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
|
4 410 (<2 000) |
26 +/- 4 |
|
5 510 (2 500) |
18 +/- 8 |
|
6 615 (3 000) |
12 +/- 6 |
|
>7 715 (>3 500) 1 |
8 +/- 4 |
|
Sugar Beet Meter Setup Recommendations |
||
|---|---|---|
|
Item |
Description or Setting |
|
|
Seed Bowl |
A105352 |
A104014 |
|
5 Tine Double Eliminator |
Brush |
Brush |
|
3 Tine Double Eliminator |
Polytine |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
Standard |
|
Meter Strip |
Smooth |
Smooth |
|
Knockout Wheel |
Wheel B AA88629 |
Wheel C AA89179 |
|
BrushBelt™ |
Green Bristles and Smooth Belt A92427 |
Green Bristles and Smooth Belt A92427 |
|
Cartridge Seal |
A104012 146 mm (5-3/4 in) length |
A104012 146 mm (5-3/4 in) length |
|
Seed Size |
Nominal Vacuum |
|
|
Mini |
NR2 |
9 +/- 5 |
|
Regular |
15 +/- 10 |
NR2 |
|
Large |
21 +/- 9 |
NR2 |
|
Cotton Meter Setup Recommendations |
|||
|---|---|---|---|
|
Item |
Description or Setting |
||
|
Seed Bowl |
A95892 |
A95892 |
A92777 |
|
5 Tine Double Eliminator |
Polytine |
Brush3 |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
Polytine |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
Standard |
Standard |
|
Meter Strip |
Agitation |
Agitation |
Agitation |
|
Knockout Wheel |
Wheel A AA85925 |
Wheel A AA85925 |
Wheel A AA85925 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
Black Bristles and Textured Belt A98765 |
Black Bristles and Textured Belt A98765 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
Nominal Vacuum |
Nominal Vacuum |
|
<7 715 (<3 500) |
NR2 |
20 +/- 10 |
15 +/- 6 |
|
9 480 (4 300) |
NR2 |
15 +/- 5 |
NR2 |
|
11 465 (5 200) |
23 +/- 7 |
11 +/- 4 |
NR2 |
|
>13 890 (>6 300) |
14 +/- 2 |
NR2 |
NR2 |
|
Popcorn Meter Setup Recommendations |
|||
|---|---|---|---|
|
Item |
Description or Setting |
||
|
Seed Bowl |
A95892 |
A95892 |
A92777 |
|
5 Tine Double Eliminator |
Polytine |
Brush3 |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
Polytine |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
Standard |
Standard |
|
Meter Strip |
Agitation |
Agitation |
Agitation |
|
Knockout Wheel |
Wheel A AA85925 |
Wheel A AA85925 |
Wheel A AA85925 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
Black Bristles and Textured Belt A98765 |
Black Bristles and Textured Belt A98765 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
Nominal Vacuum |
Nominal Vacuum |
|
<5 510 (<2 500) |
NR2 |
22 +/- 8 |
20 +/- 10 |
|
6 615 (3 000) |
NR2 |
19 +/- 10 |
NR2 |
|
8 820 (4 000) |
NR2 |
19 +/- 10 |
NR2 |
|
>11 025 (>5 000) |
23 +/-7 |
10 +/-2 |
NR2 |
|
Milo/Sorghum Meter Setup Recommendations |
|
|---|---|
|
Item |
Description or Setting |
|
Seed Bowl |
A104014 |
|
5 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
|
Meter Strip |
Smooth |
|
Knockout Wheel |
Wheel C AA89179 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
|
Cartridge Seal |
A104012 146 mm (5-3/4 in) length |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
|
<5 443 (<12 000) |
18 +/- 2 |
|
6 804 (15 000) |
12 +/- 2 |
|
>8 165 (>18 000) |
9 +/- 2 |
|
Sunflowers Meter Setup Recommendations |
|
|---|---|
|
Item |
Description or Setting |
|
Seed Bowl |
A95896 |
|
5 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
|
Meter Strip |
Smooth |
|
Knockout Wheel |
Wheel A AA85925 |
|
BrushBelt™ |
Black Bristles and Textured Belt A98765 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
|
<2 268 (<5 000) |
25 +/- 5 |
|
3 175 (7 000) |
15 +/- 2 |
|
>4 082 (>9 000) |
10 +/- 1 |
|
Sweet Corn Meter Setup Recommendations |
||
|---|---|---|
|
Item |
Description or Setting |
|
|
Seed Bowl |
A92777 |
A95896 |
|
5 Tine Double Eliminator |
Polytine |
Polytine |
|
3 Tine Double Eliminator |
Polytine |
Polytine |
|
3 Tine Double Eliminator Position |
Standard |
Standard |
|
Meter Strip |
Smooth |
Smooth |
|
Knockout Wheel |
Wheel A AA85925 |
Wheel A AA85925 |
|
BrushBelt™ |
Green Bristles and Smooth Belt A92427 |
Green Bristles and Smooth Belt A92427 |
|
Seeds/kg (Seeds/lb) |
Nominal Vacuum |
Nominal Vacuum |
|
<1 497 (<3 300) |
23 +/- 5 |
|
|
>1 497 (>3 300) |
16 +/- 2 |
|
|
ExactEmerge is a trademark of Deere & Company BrushBelt is a trademark of Deere & Company 1 If the Soybeans are >3500/lb, use the inner double eliminator at the less aggressive position. 2 Not Recommended for optimal performance. 3 Polytine is suggested unless using small seed and Polytine is too aggressive; then use the Brush double eliminator. |
WP29706,000093D-19-20161121 |
