Easy Adjust Row Cleaner with Unit Mounted Coulter

CAUTION:

A87928-UN-29SEP15

A87588-UN-10SEP15

A87761-UN-21SEP15

Service Pin

A - Cap Screw

B - Nut

C - Pin

Avoid injury from unexpected component movement. Relieve pneumatic system pressure before service or manual adjustments.

Safely support machine before service.

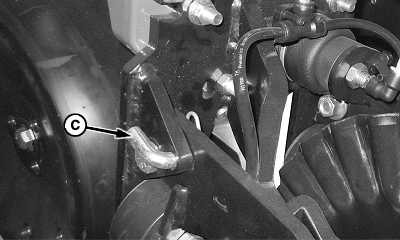

IMPORTANT: To prevent damage, remove cotter pin and pin (C) from right-hand side of each row cleaner before operation. Pin can be installed for service or storage.

The function of the row cleaner is to sweep aside residue without moving soil.

Ground conditions, depth adjustment, and ground speed affect the width of path cleared.

Do not expect 100% removal of crop residue. Complete residue removal is not necessary. Complete removal requires engagement of soil, which is not recommended.

Expect row cleaners to stop turning occasionally when they are properly adjusted above soil surface.

Adjust planter frame height and level the planter for proper row cleaner operation (See Preparing Machine section).

IMPORTANT: Operation with maximum down force or when mounted in the lowest position can affect seed depth.

NOTE: Avoid operation in excessively rocky conditions. Contact with obstacles can raise entire row unit and alter seed depth.

If the residue clearing action is too aggressive, standard tine-tooth wheels are available from your dealer.

Adjust down force according to residue conditions and to maintain the target seed depth. (See SeedStar™ 3 Operator’s Manual for operation and adjustment through display.)

If a mechanical depth stop is needed on a row cleaner:

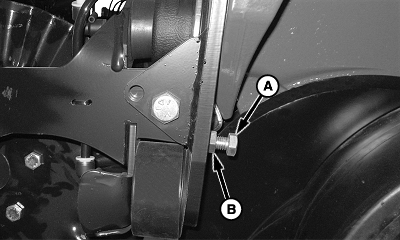

1. Loosen cap screw (A) and nut (B).
2. Adjust cap screw (A) position until the crucial depth limit is achieved.
3. To lock the cap screw in position, tighten nut (B).
