Install the Cartridge Seal
NOTE: Refer to the Meter Settings charts in the operator’s manual for the seal part number used with this type of planting.
When planting Sugar Beet or Sorghum seeds, the cartridge seal must be used. The cartridge seal does not interfere when planting other crop seeds.

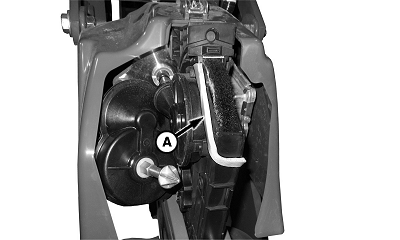

A89526-UN-08FEB16
A - Cartridge Seal
Install the cartridge seal (A) on the edge of the BrushBelt™ cartridge as shown when planting Sugar Beet or Sorghum seeds. If the seal is damaged during operation, replace the seal.|
WP29706,000099E-19-20160705 |
