Electric Drive Fuse Box Location

A90504
A90504-UN-06MAY16

Fuse Box Location

A90505
A90505-UN-06MAY16

Single Fuse Box

A90506
A90506-UN-06MAY16

Dual Fuse Boxes

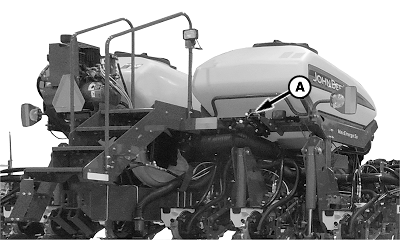

A - Right Side CCS™ Tank Support

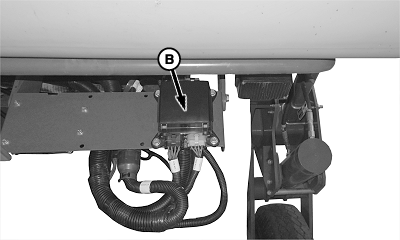

B - Single Fuse Box

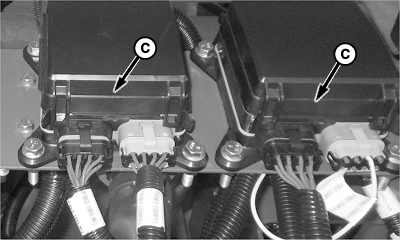

C - Dual Fuse Boxes

The location of the electric drive fuse box (A) is the right side CCS™ tank support as shown.

The number of row units for the machine determines whether a single fuse box (B) or the dual fuse boxes (C) are attached to the machine.
