Adjust 24 Row Contact Link Air Spring Pressure
CAUTION: Avoid serious injury from exploding parts. Lower the
planter into the plant position before adjusting air spring pressure.

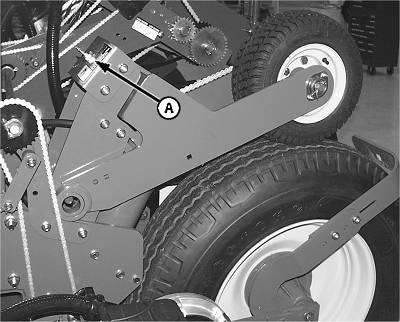

A53582-UN-07JAN04
A - Air Spring
Lower the planter into the plant position and inflate the contact link air spring (A) to the pressure specification.
| Item | Measurement | Specification |
| Air Spring | Pressure | 758 kPa (7.58 bar) (110 psi) |
For the best performance, ensure that the frame tire and the contact drive tire are inflated to the proper pressure.
|
WP29706,0000A3F-19-20160708 |
