Adjust 24 Row Contact Link

1. NOTE: For best results, adjust the planter while parked on the field soil conditions.


   A53583-UN-07JAN04


   A53584-UN-07JAN04

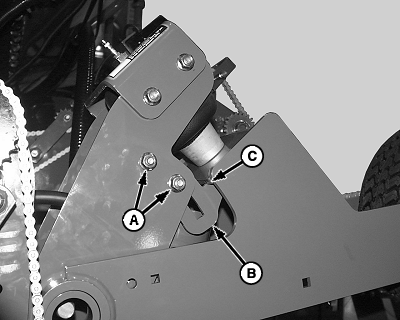

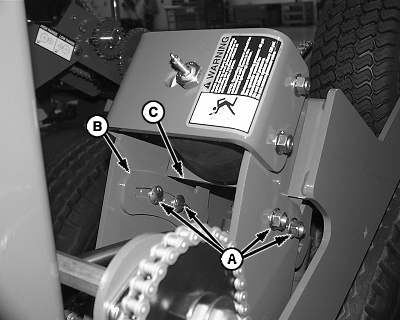

   A - Carriage Bolts

   B - Adjustment Brackets

   C - Stop Plate

   Lower the planter on level ground.

---




2. CAUTION: Avoid a crushing injury. Do not loosen the carriage bolts (A) unless the tires are in contact with each other. The planter must be in the lowered position.

   Loosen the carriage bolts (A).

3. Raise the planter until the planting units are at the height which seeding begins and ends. Initially, adjust the starting point just as the opener blades are barely in contact with the ground.

4. Position the adjustment brackets (B) so they are firmly in contact with the stop plate (C).

5. Tighten the bolts (A) to specification.

   Item	Measurement	Specification
   Carriage Bolt	Torque	142 N·m (105 lb·ft)

6. Field test and adjust if necessary.
