Lubrication Intervals

Lubrication Intervals
Item	Start of Season	As Required	10 Hours or Daily	25 Hours	50 Hours	100 Hours	200 Hours	End of Season
Fertilizer Shut Off Valves	●							●
Quick Fill Valve	●							●
Gauge Wheels			●
Hitch Pivot			●
Wing Flex Joints			●
Marker Pivot Pin			●
Single Disk Fertilizer Opener			●		●
24R Frame Mounted Coulter (if equipped)			●
12R and 16R Marker Pivot and Control Strap			●
Piston Pump Shafts (if equipped)			●
Piston Pump Crankcase			●
Tillage Support bracket			●
24R Fixed rate Pump Shafts (if equipped)			●
24R Fixed rate Pump Crankcase			●
24R Frame Fold Point			●
24R Wing Flex Point			●
24R Fold Cylinder			●
24R Marker			●
Main Frame Wheel Modules				●
Wing Wheel Modules				●
Main Frame Cylinders Rod Ends				●
Wing Wheel Bearings					●
Drawbar Hitch (if equipped)					●
Fold Joints						●
Unit Mounted Single-Disk Fertilizer Openers							●
Unit Mounted Coulter							●
Unit Mounted Row Cleaners					●		●
Unit Mounted Row Cleaner Adjustment Arm							●
Tractor Power Generator Gear	●
Tractor Power Generator Gear Case	Check Oil							Replace gear case oil

A47824-UN-25SEP01

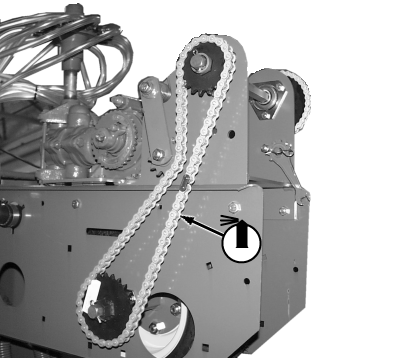

12R and 16R Piston Pump Drive Chain (If Equipped)

A47825-UN-13SEP01

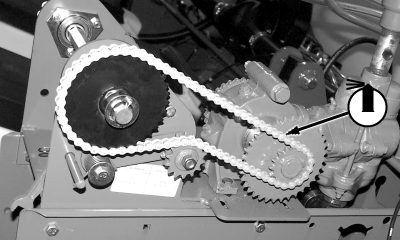

12R and 16R Piston Pump Chain (If Equipped)

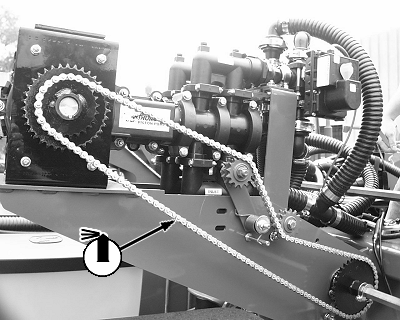

A53276-UN-31OCT03

24R Fertilizer Pump Drive Chain (If Equipped)

A38363-UN-16JUL08

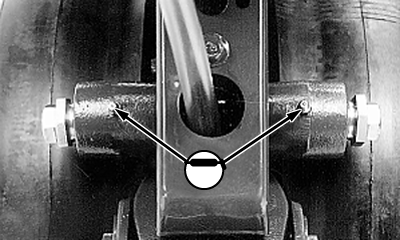

Gauge Wheels

A49905-UN-02JUN08

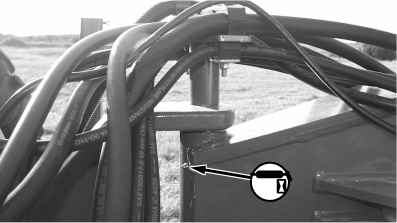

12R and 16R Hitch Pivot

A47831-UN-30MAY08

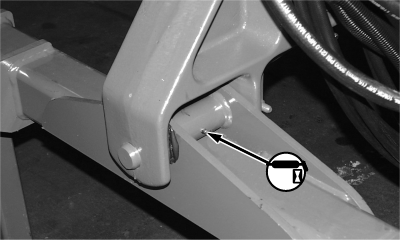

12R and 16R Hitch Pivot

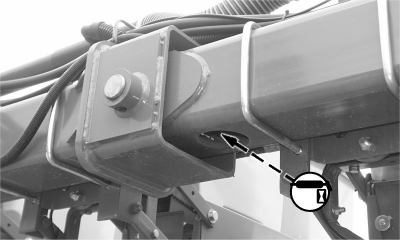

A47826-UN-30MAY08

12R and 16R Wing Flex Joints

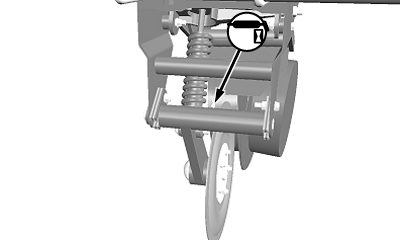

A56253-UN-30MAY08

12R and 16R Frame Mounted Coulter (If Equipped)

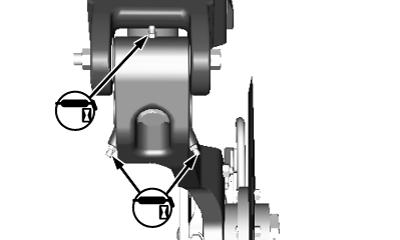

A51065-UN-30MAY08

12R and 16R Frame Mounted Fertilizer Opener (If Equipped)

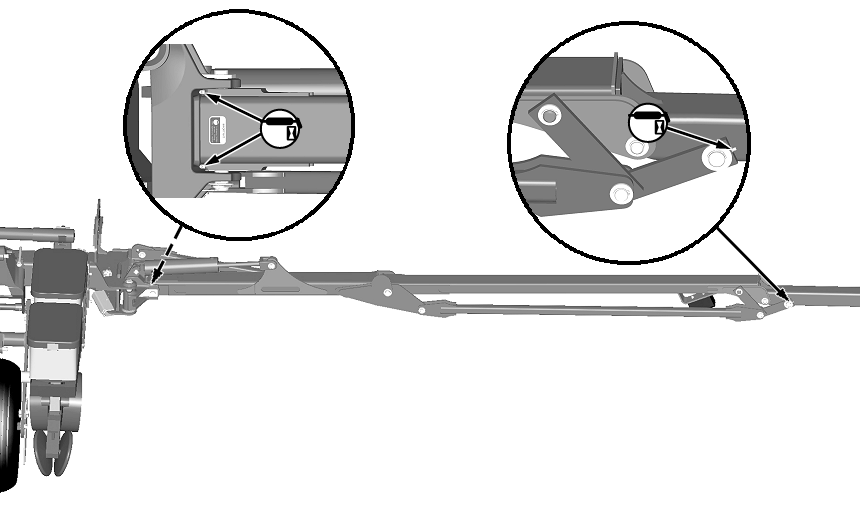

A56734-UN-02JUN08

12R and 16R Marker Pivot and Control Strap

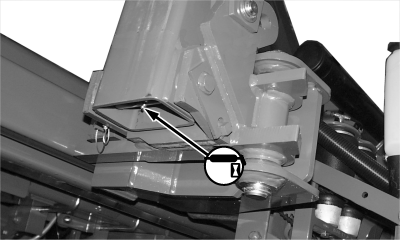

A47830-UN-30MAY08

Marker Pivot Pin

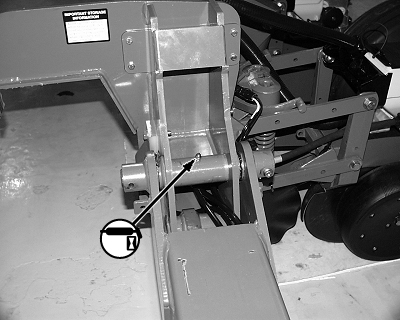

A52984-UN-01OCT03

24R Marker

A52985-UN-31OCT03

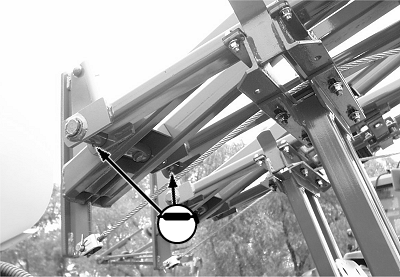

24R Marker

A53273-UN-31OCT03

24R Marker

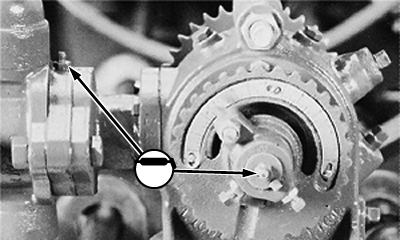

A35436-UN-16JUL08

12R and 16R Piston Pump Shafts (If Equipped)

A35437-UN-21DEC92

12R and 16R Piston Pump (If Equipped)

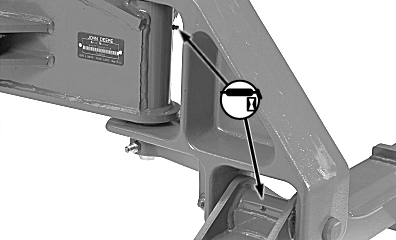

A64650-UN-15MAY09

Hitch Pivot

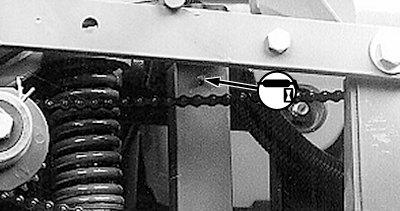

A47117-UN-30MAY08

24R Tillage Support Bracket (If Equipped)

A51065-UN-30MAY08

24R Frame Mounted Fertilizer Opener (If Equipped)

Cover the weep hole (B) tightly with your finger. Pump the grease into the fitting (A) until the pressure pushes the grease past your finger. Repeat on the other pump.

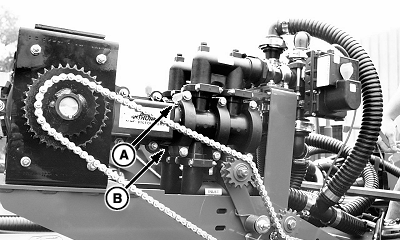

A53468-UN-10DEC03

24R Fixed Rate Pump Shafts (if equipped)

Fixed Rate Pumps (If Equipped)

A53059-UN-10OCT03

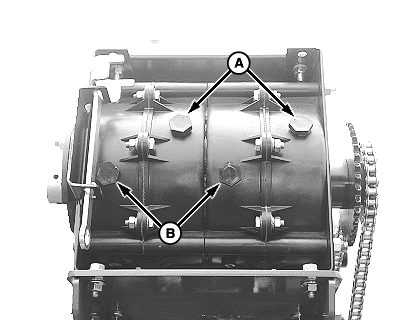

A - Fill Plugs

B - Check Plugs

1. Lower the planter into the plant position before checking the oil level.

2. Remove the fill plugs (A) and check the plugs (B) from both of the pump crankcases.

3. Fill each crankcase with SAE 30 TY22070 Torq-Gard Supreme™ engine oil or the equivalent at the fill ports until the oil is level with the check ports.

4. Install the plugs.

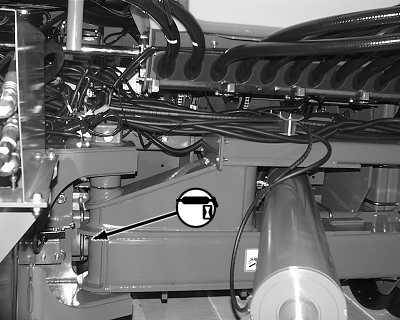

A52980-UN-01OCT03

24R Frame Fold Point

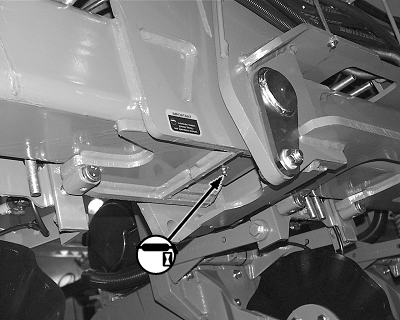

A52983-UN-01OCT03

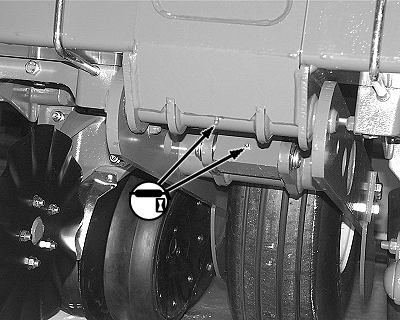

24R Wing Flex Point

A53357-UN-18NOV03

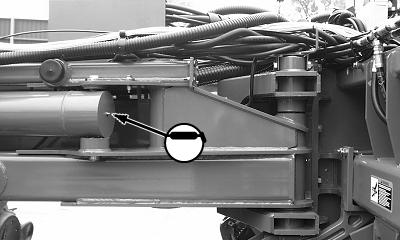

24R Fold Cylinder

A52986-UN-01OCT03

24R Wing Wheel Module

A52988-UN-01OCT03

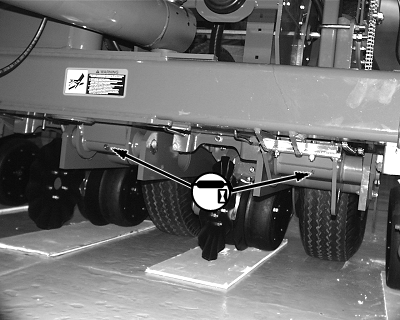

24R Main Frame Wheel Module

A83632-UN-12SEP14

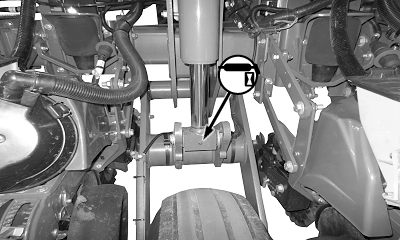

24R Main Frame Cylinder, Rod End

A47827-UN-30MAY08

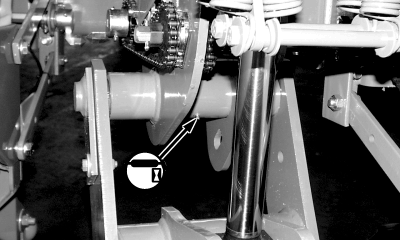

12R and 16R Main Frame Wheel Modules

A47891-UN-30MAY08

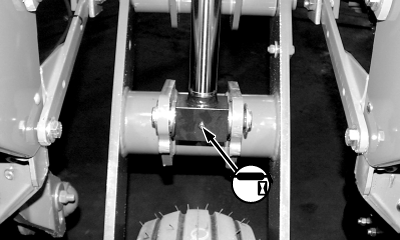

12R and 16R Main Frame Wheel Module

A47828-UN-30MAY08

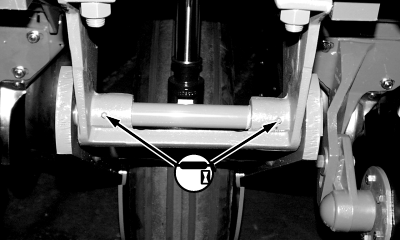

Wing-Wheel Modules, 16 Row

A53546-UN-02JUN08

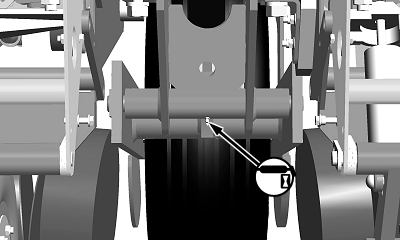

Wing-Wheel Modules, 12 Row

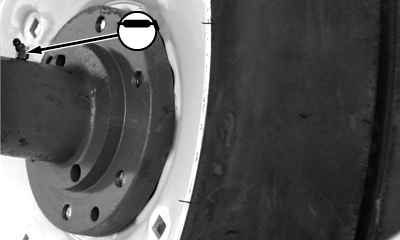

A47238-UN-16JUL08

Wing Wheel Bearings

A52398-UN-07JUL03

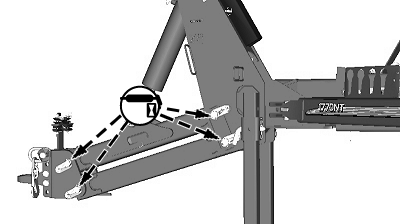

Drawbar Hitch (If Equipped)

CAUTION:

A64844-UN-01JUN09

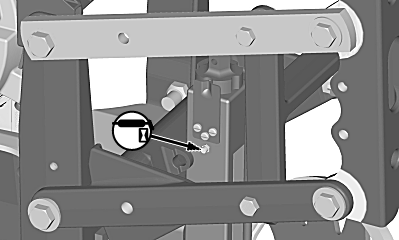

Unit Mounted Row Cleaner Adjustment Arm

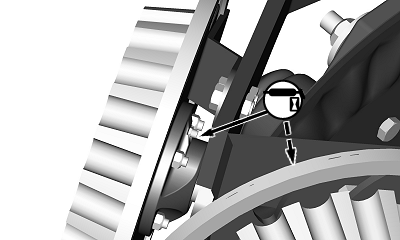

A64845-UN-01JUN09

Row Cleaner for Unit Mounted Coulter

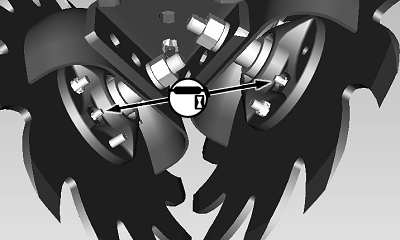

A64843-UN-01JUN09

View From Under Unit Mounted Row Cleaner

A47829-UN-30MAY08

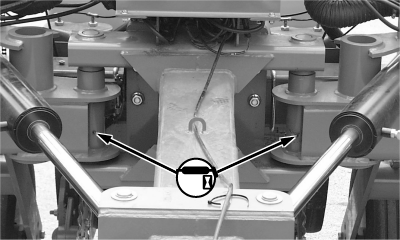

12R and 16R Fold Joints

A53429-UN-02JUN08

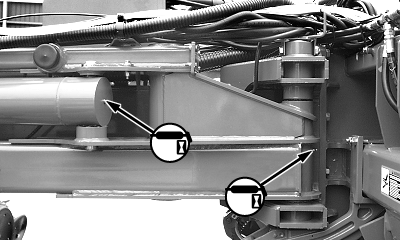

24R Fold Joints

Row cleaner hubs have sealed bearings. Factory and regular lubrication is not required. To keep dust away from the bearing seal, add grease to the hub grease fittings annually or every 200 hours. Add grease slowly until a slight resistance is felt or a small amount of grease comes out between the hub and the blade. If a non-sealed replacement bearing is installed, grease the row cleaner hubs every 50 hours.

A51069-UN-02JUN08

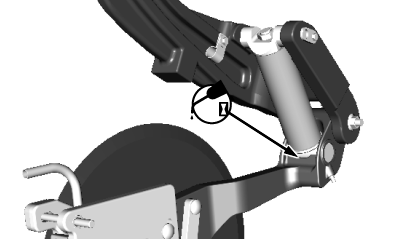

Single-Disk Fertilizer Opener (If Equipped)

A46093-UN-11APR00

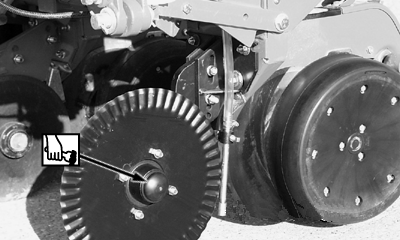

Unit Mounted Single-Disk Fertilizer Opener (If Equipped)

A29983-UN-16JUL08

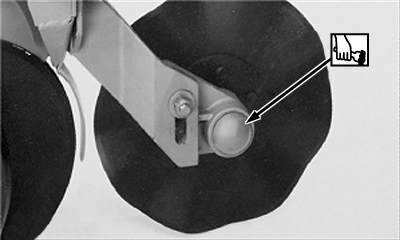

Unit Mounted Coulter

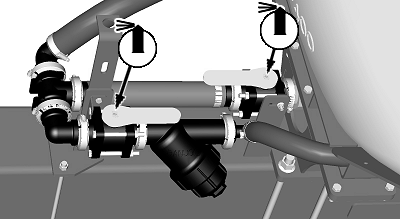

A53424-UN-02DEC03

Fertilizer Shut Off Valves

A76565-UN-31OCT12

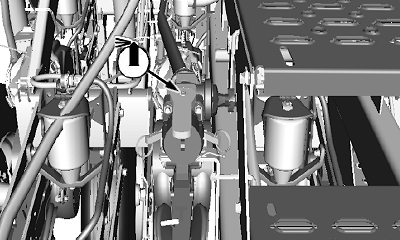

Quick Fill Valve

A87384-UN-27AUG15

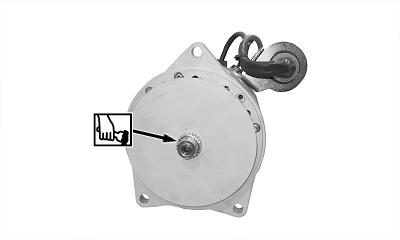

Alternator Gear

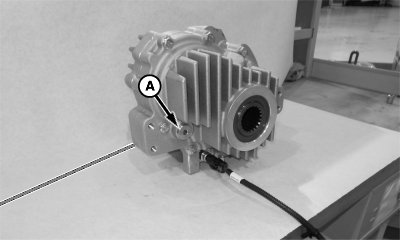

A88356-UN-03NOV15

Gear Case Oil

A - Plug

IMPORTANT: John Deere™ HD Moly Grease is preferred.

Before installing on the tractor, apply molybdenum grease to the alternator gear.

Place the gear case in upright position as shown on a level surface, remove the plug (A), and verify that the oil is level with hole. Add John Deere™ Hy-Gard™ oil as needed.

To replace oil:

1. Remove the plug (A) and tilt the gear case until all the oil drains from the plug hole.
2. After drained, placed the gear case in upright position as shown on a level surface.
3. Fill with approximately 0.5 L (17 fl oz) of John Deere™ Hy-Gard™ oil or until level with the bottom of the plug hole.
4. Install the plug into the gear case.
