Individual Row Hydraulic Downforce Diagnostics

A79863
A79863-UN-29JAN14

Planter Button

A59567
A59567-UN-08MAR07

Diagnostic Button

A88817
A88817-UN-06JAN16

A88816
A88816-UN-14DEC15

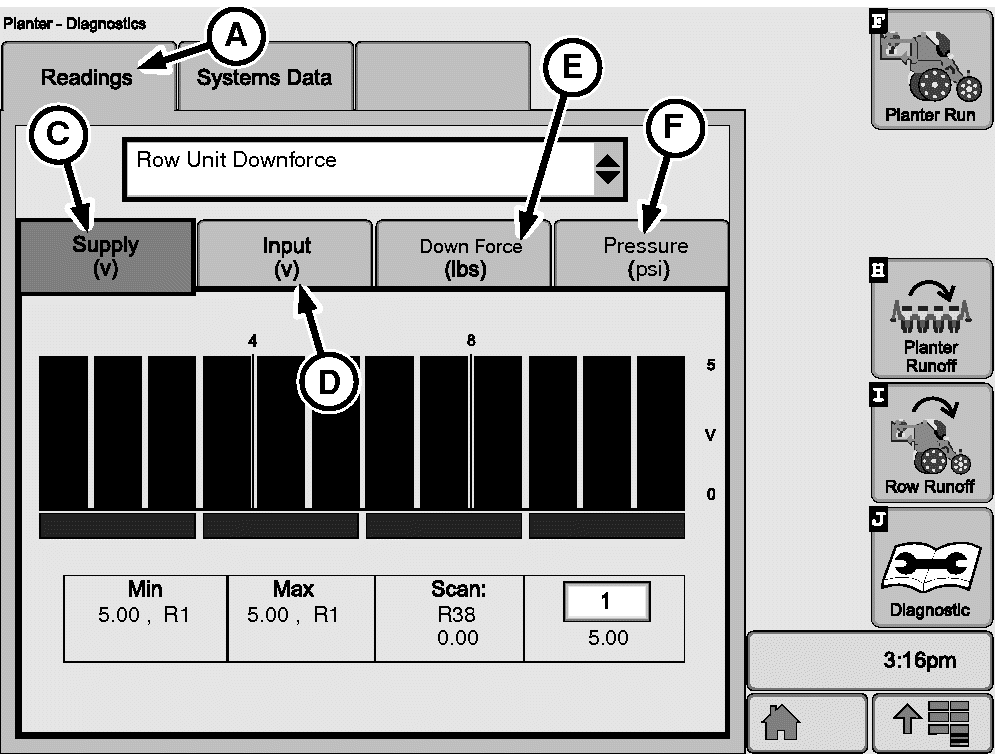

A - Readings Tab

B - Row Unit Downforce

C - Supply Voltage

D - Input Voltage

E - Downforce

F - Pressure

This screen is used to monitor downforce sensor data for each individual row unit on one screen.

  1. Select Menu >> Planter button >> Diagnostics button >> Readings tab (A).

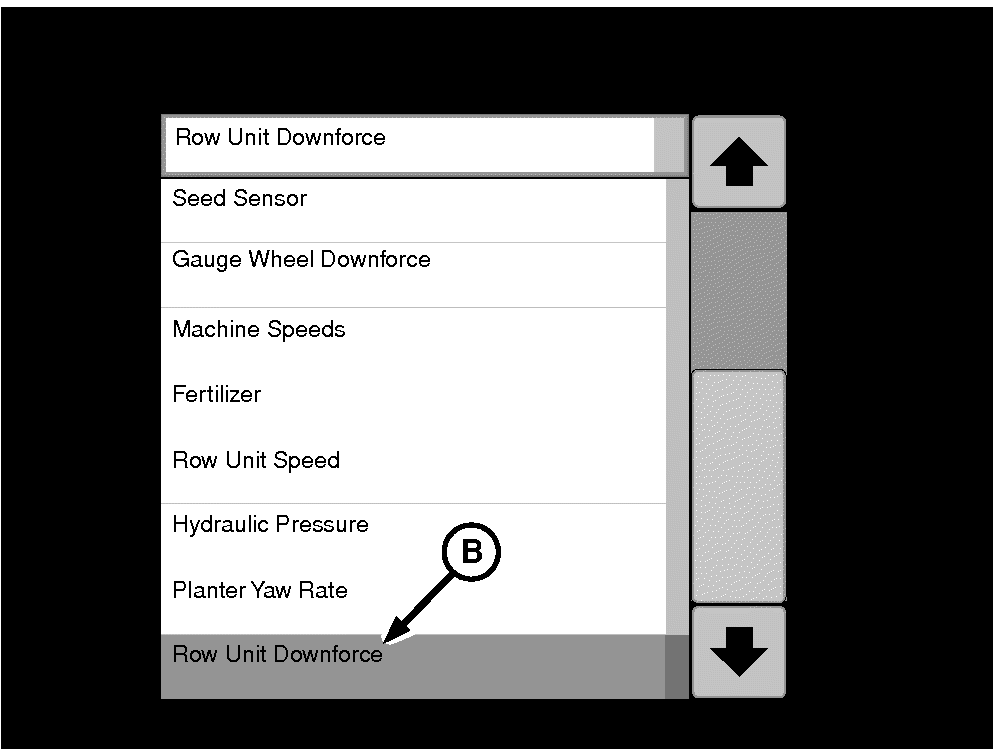

  2. Select Row Unit Downforce (B) from drop-down list.

Several information tabs are located and monitored on this page:

  • Supply Voltage (C) for downforce sensors represented in a numerical bar graph.
  • Input Voltage (D) for downforce sensors represented in a numerical bar graph.
  • Downforce (E) is represented in a numerical bar graph showing the actual downforce sensed by the sensors on each individual row unit.
  • Pressure (F) is represented in a numerical bar graph showing the hydraulic downforce pressure on each individual row unit.

WP29706,0000B1D-19-20161219
