Repair Steel Gauge Wheel Assembly

1. Clean dirt from parts before removing wheel.

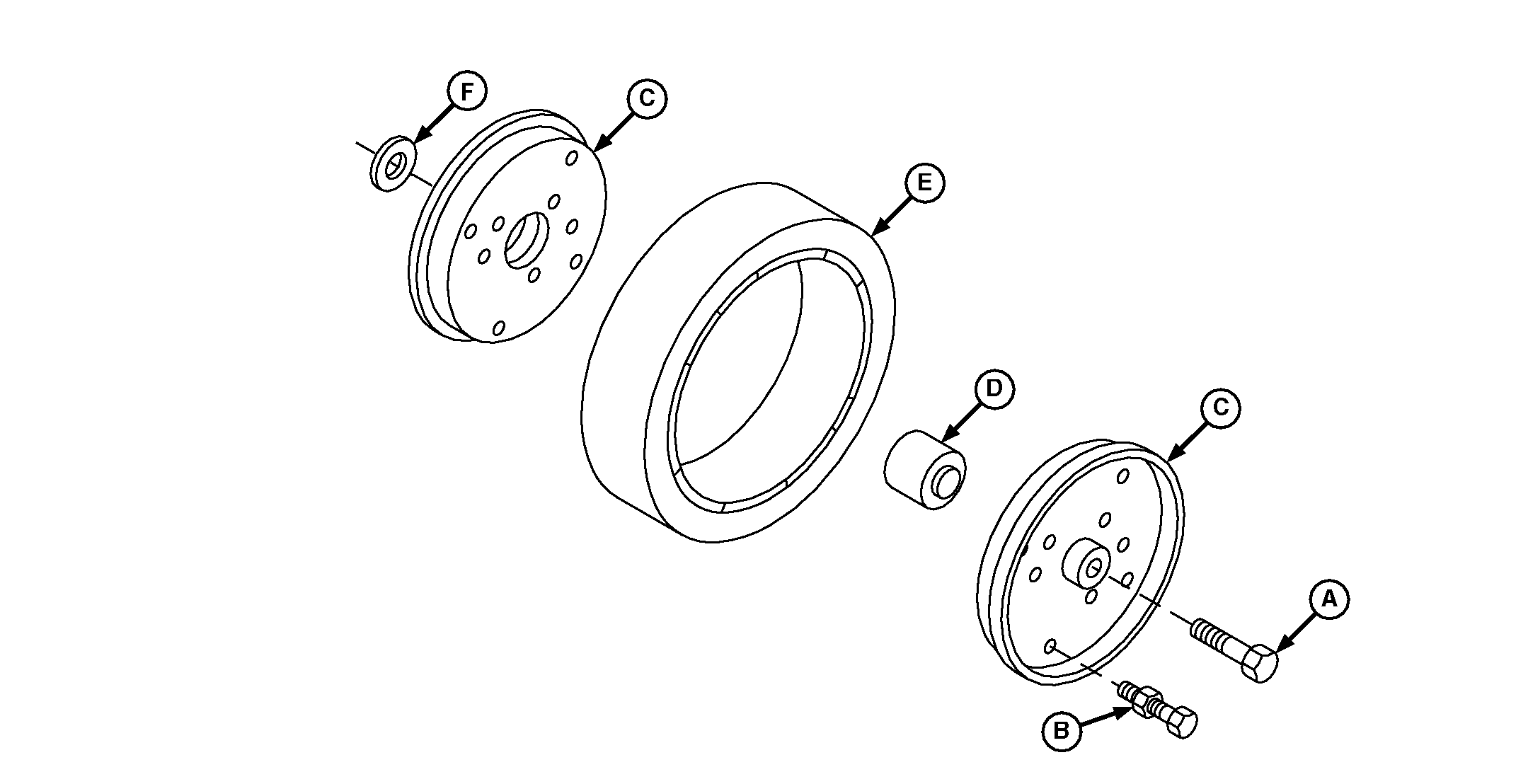

   N49843-UN-23APR98

   A - Cap Screw, 5/8 x 3 in

   B - Cap Screw and Lock Nut, 5/16 x 5/8 in

   C - Wheel Half

   D - Bearing

   E - Rubber Tire

   F - Shim Washers (As Required)

   Remove cap screw (A) and wheel assembly from arm.

---




2. Remove hardware (B) and disassemble wheel.

3. Inspect parts for wear or damage and replace as necessary.

4. Reassemble wheel with hardware (B). Tighten four outer cap screws first; then three inner cap screws.

5. Attach wheel to arm with shim washers (F) and cap screw (A). Tighten cap screw to specification.

   Cap Screw	Torque	231 N·m (170 lb·ft)
