Repair Smooth-Sided Gauge Wheel Assembly

1. Clean dirt from parts before removal.

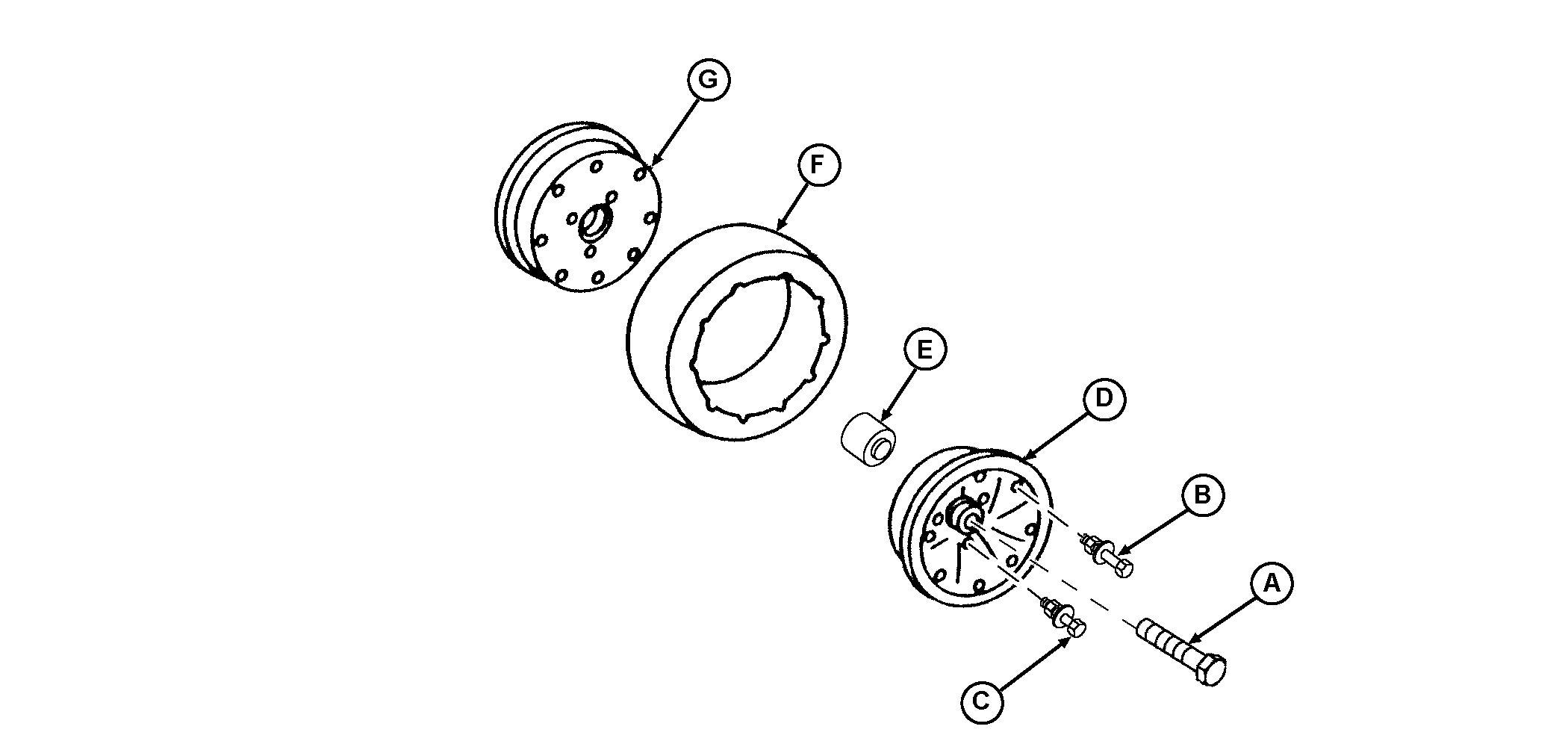

   N49836-UN-21APR98

   A - Cap Screw, 5/8 x 3 in

   B - Cap Screw, Washer, and Lock Nut, 5/16 x 1 in

   C - Cap Screw, Washer, and Lock Nut, 5/16 x 1-3/4 in

   D - Outer Wheel

   E - Bearing

   F - Tire

   G - Inner Wheel

   Remove center cap screw (A) and wheel assembly.

---




2. Remove hardware (B and C) to disassemble wheel.

3. Inspect parts for wear or damage and replace as necessary.

4. Assemble bearing (E) and wheel parts with previously removed hardware.

5. Attach wheel to arm using previously removed hardware.
