Check Gauge Wheel Clearance—All Gauge Wheels
Clearance must be checked at the seed boot outlet.
A85860-UN-09APR15

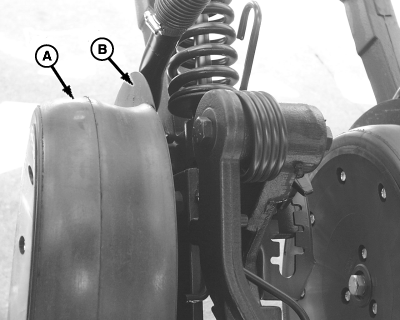

114 mm (4.5 in) Closed Gauge Wheel Shown
A85861-UN-09APR15

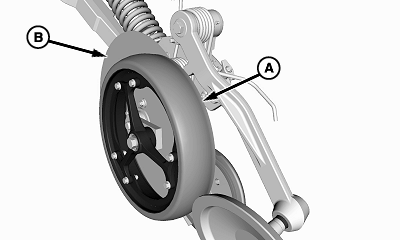

76 mm (3 in) Spoked Gauge Wheel Shown
A - Disk Opener
B - Gauge Wheel
Measure clearance between gauge wheel (A) and disk opener (B).Verify that the clearance is 1.0 to 5.6 mm (0.04 to 0.22 in).
Add or remove shim washers at wheel mounting, as necessary, to obtain the preferred opener setting.
| Gauge Wheel to Disk Opener | Clearance | 1.0—5.6 mm (0.04—0.22 in) |
|
