Warning Light Configuration (Style A)

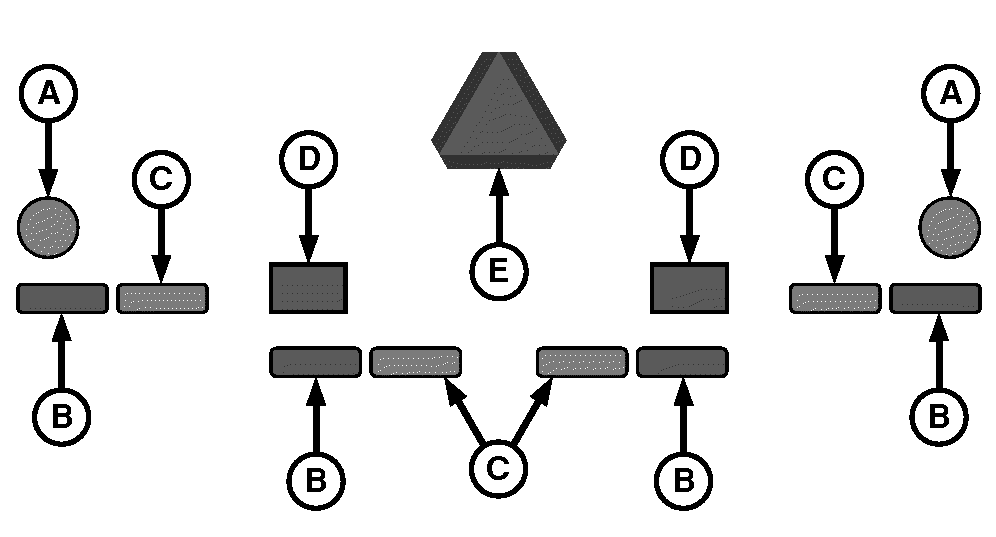

A95734-UN-31MAR17
A - Amber Light
B - Red Reflector
C - Orange Reflector
D - Red Light
E - SMV Emblem
Viewed from the rear of the machine, the lights and reflectors
are oriented as shown.
-
Amber light (A)
-
Red reflector (B)
-
Orange reflector (C)
-
Red light (D)
-
Slow moving vehicle (SMV) emblem (E)

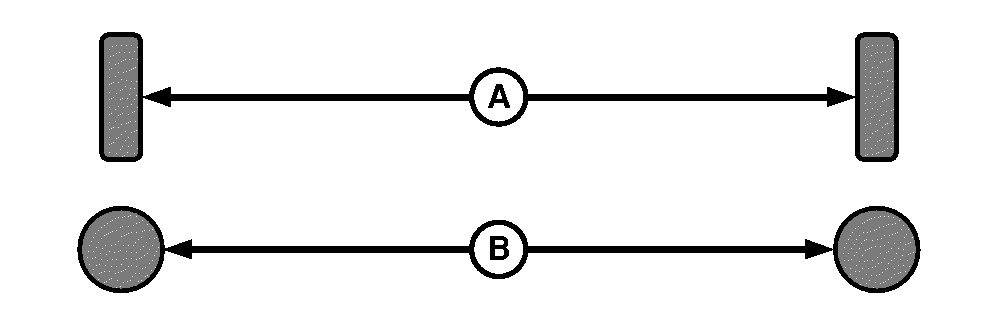

A95929-UN-31MAR17
A - Yellow Reflector
B - Amber Light
Viewed from the front of the machine, the lights and reflectors
are oriented as shown.
-
Yellow reflector (A)
-
Amber light (B)
|
|
BB83525,0000234-19-20170331
|
|
