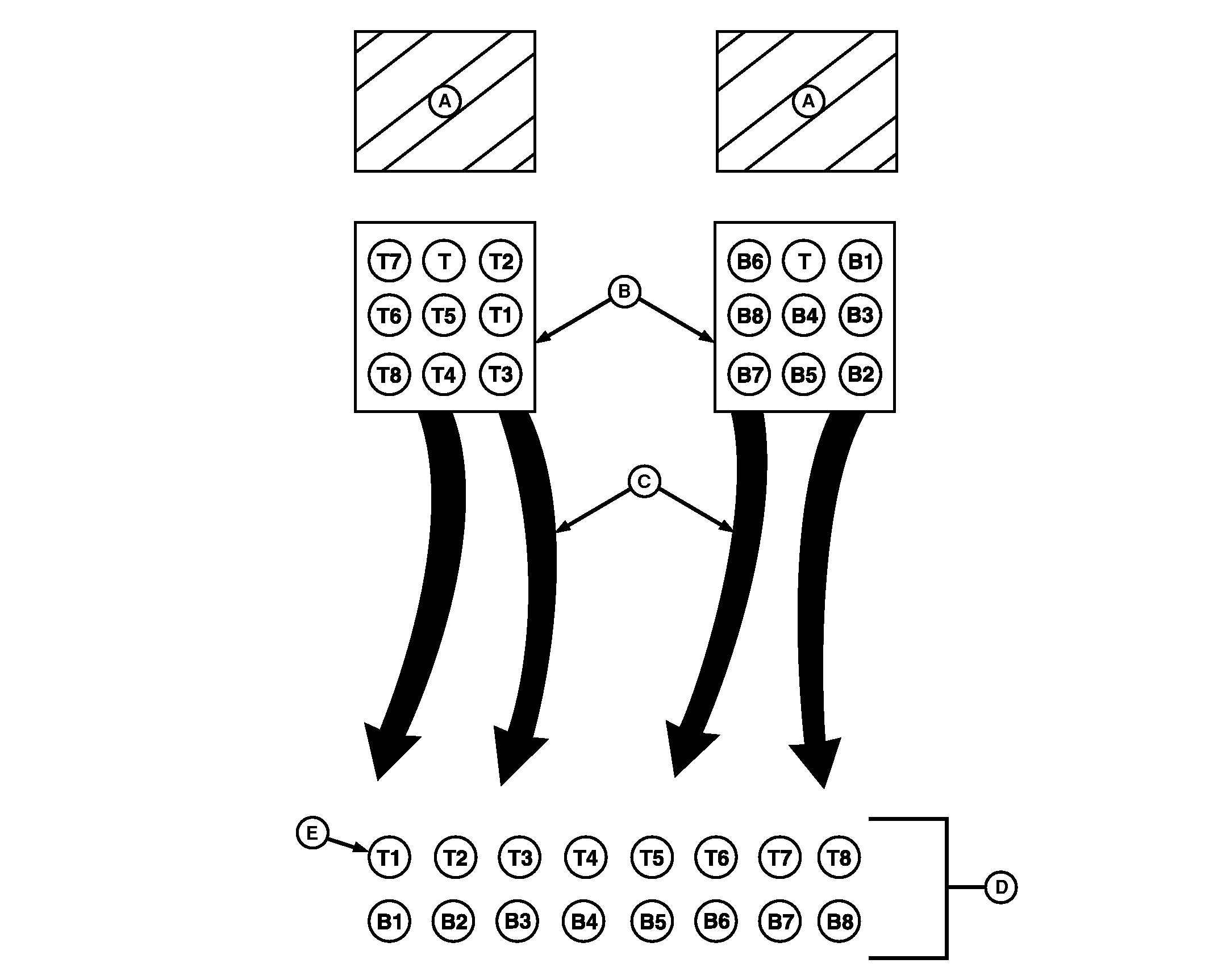

Systematic Approach to Air Run Identification (Dual Blower System)

A90113-UN-14APR16

A - Blower (2 used)

B - Air Cart Plenum Ports

C - Uniform Air Velocity

D - Double Shoot System

E - Single Shoot System Only

Number the meter cartridge segments and corresponding product runs from left-to-right. The same numbering process can be applied to the seeding tools primary air lines and secondary headers.

A dual blower system is numbered left-to-right T1—T8 for the top runs and left-to-right B1—B8 for the bottom runs. Tank pressurization hoses are shown above using the letter “T”. These hoses direct air to tank pressurization valves on the left-hand side of cart. The tank pressurization valves direct air to tanks on cart to pressurize the system.

Systems using less than the full number of available runs are also numbered from left-to-right, counting only the active product carrying runs.
