The following procedure aligns the air cart meter with
the seeding tool.
-
Avoid tank siphoning. Install cap (C) on plenum.
Double-shoot manifold must have the same number of runs on the
top and bottom. (For every top run there must be a bottom run directly
underneath.)

A64727-UN-29MAY09

A84053-UN-07NOV14
A - Tube, Seals, and Hose Clamps
B - Pressurization Fitting
C - Cap

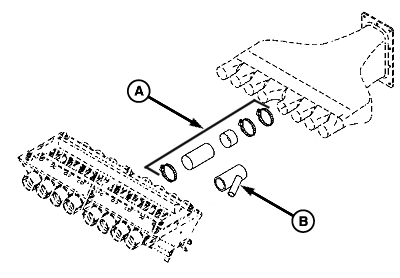

Remove existing parts (A) from tube being blocked. If the
tube has fitting (B), move tube with the fitting to another run where
air flow is not blocked.
-

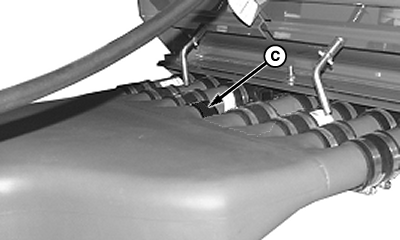

Install provided cap (C).
-
Previously removed parts cover the cap.
Install previously removed parts. Tighten to specification.
| | |
|
Hose Clamp | Torque | 4 N·m (36 lb·in) |
-
If preferred, label the tube to indicate a blocked run for future
reference.
-
Repeat for other rows that need blocked.
-
On air carts with tire interference, rotate lock handle
to clear the tire.

A75223A-UN-08MAY12

A75224-UN-08MAY12
A - Cam Lock Handle
B - Cam
C - Lock Handle
D - Lock Plate
E - Cartridge Handle
F - Cartridge
G - Lock Plate
Disconnect gate detection sensor (if equipped).
-
Release lock handle (C) from the lock plate (D) by turning handle
clockwise.
-
Rotate cam lock handle (A) up. To disengage cam (B) from the
cartridge handle (E), pull handle toward the front of the machine.
-
Turn cartridge (F) counterclockwise to release handle (E) from
the lock plate (G).
-
Pull meter assembly from the housing.
-
Install or engage agitators on active runs. Disengage
agitators on inactive runs.

A90107-UN-12APR16

A89633-UN-08MAR16

A77936-UN-30MAY13
A - Meter Cover (as required)
B - Meter Seal (as required)
Install (snap) meter covers (A) into enclosure openings.
-
Install meter seals (B) between the meter cartridge and manifold
plate.
-
Install meter in reverse order.
