Open or Close Product Runs—1910 (Dual Blower System)

The following procedure aligns the air cart meter with the seeding tool.

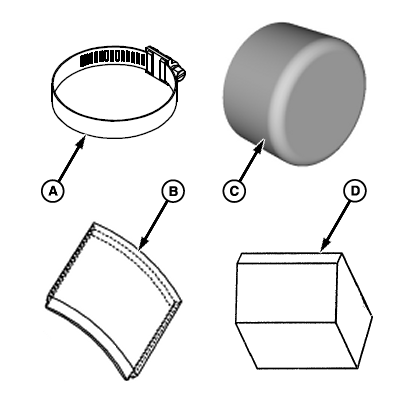

A64463-UN-15APR09

A - Hose Clamp

B - Meter Cover

C - Cap, 76.2 mm (3 in) ID

D - Meter Seal

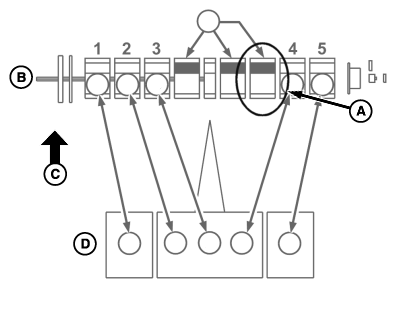

A64458-UN-15APR09

A - Run Blocked

B - Cart Meter Cartridge

C - Direction of Travel

D - Seeding Tool

1. Double-shoot manifold must have the same number of runs on the top and bottom. (For every top run there must be a bottom run directly underneath.)


   A89787-UN-10MAR16

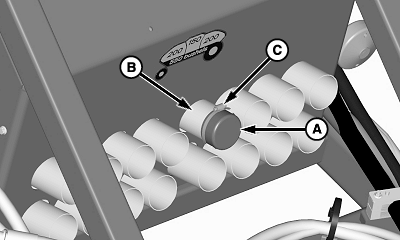

   Tow-Behind Cart Shown


   A89788-UN-10MAR16

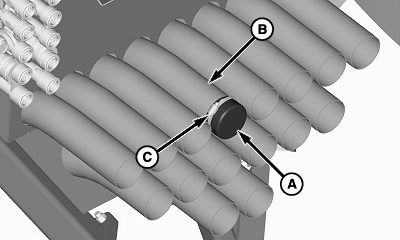

   Tow-Between Cart Shown

   A - Cap, 76.2 mm (3 in) ID

   B - Tube

   C - Hose Clamp

   Install provided cap (A) onto tube (B) using hose clamp (C). Tighten to specification.

   Hose Clamp (C)	Torque	4 N·m (36 lb·in)

---




2. Repeat for other rows that need blocked.

3. On air carts with tire interference, rotate lock handle to clear the tire.

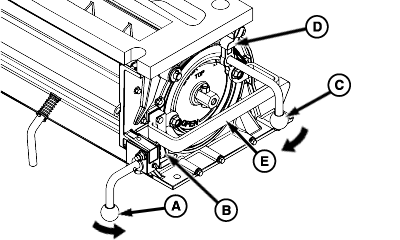

   A75223A-UN-08MAY12


   A75224-UN-08MAY12

   A - Cam Lock Handle

   B - Cam

   C - Lock Handle

   D - Lock Plate

   E - Cartridge Handle

   F - Cartridge

   G - Lock Plate

   Disconnect gate detection sensor (if equipped).

---




4. Release lock handle (C) from the lock plate (D) by turning handle clockwise.

5. Rotate cam lock handle (A) up. To disengage cam (B) from the cartridge handle (E), pull handle toward the front of the machine.

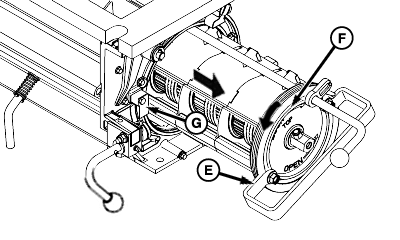

6. Turn cartridge (F) counterclockwise to release handle (E) from the lock plate (G).

7. Pull meter assembly from the housing.

8. Install or engage agitators on active runs. Disengage agitators on inactive runs.


   A90107-UN-12APR16


   A89633-UN-08MAR16


   A77936-UN-30MAY13

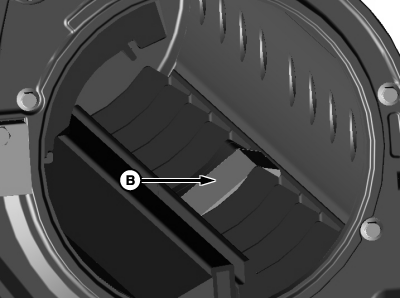

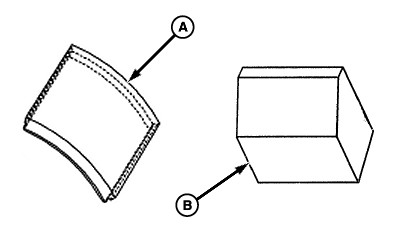

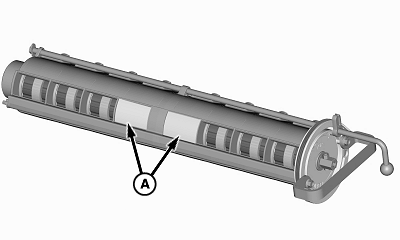

   A - Meter Cover (as required)

   B - Meter Seal (as required)

   Install (snap) meter covers (A) into enclosure openings.

---




9. Install meter seals (B) between the meter cartridge and manifold plate.

10. Install meter in reverse order.
